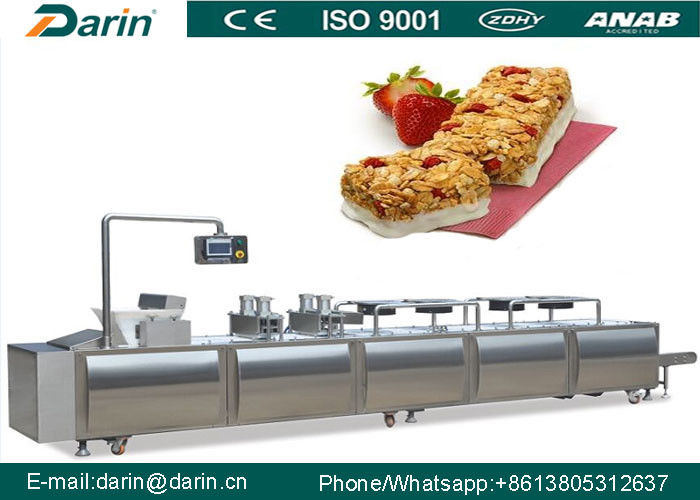

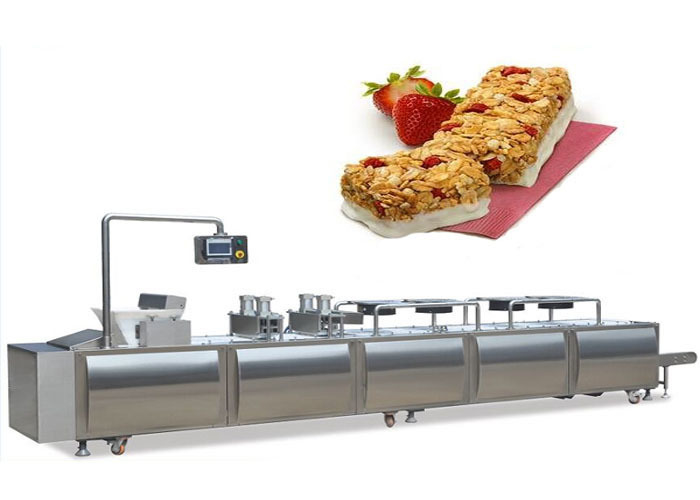

Cereal Bar Making Equipment Bar Forming Machine With Siemens PLC

Cereal Bar Making Equipment Bar Forming Machine With Siemens PLC

Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: DRC-65

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: USD 7000~ USD27000
Packaging Details: We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading.
Delivery Time: 45 working days after receiving the down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets per year
Get Best Price Contact Now

Detail Information

Condition: New Name: Multinational Oat Chocolate Cereal Fruits Nuts Candy Bar Moulding Machine
Material: SUS304 Brand: Darin
Capacity: 300~500kg Per Hour After-sales Service Provided: Engineer Available To Service Machinery Overseas
Warranty: 12 Months Warranty
High Light:

peanut bar making machine

,

cereal bar making machine

Product Description

Introduction
DRC-65 Rice Bar Making Machinery can produce all kinds of shapes of cereal bars with the raw material of rice, millet, wheat, highland barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl barley, buckwheat, etc.



Features

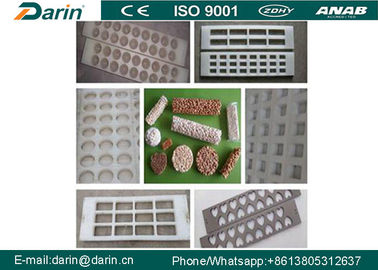

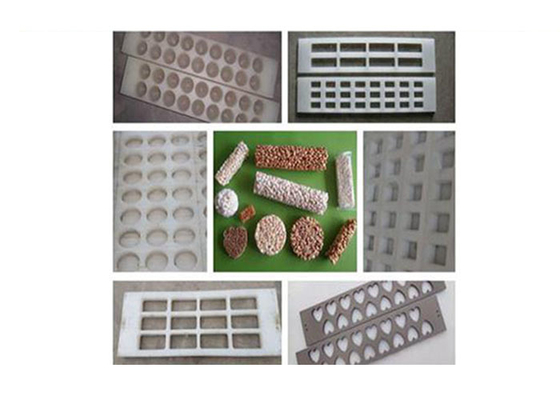

1. The shapes can be round, cylindrical, square, semi round, triangular and blossom, etc.
2. Mechanical pressing & rubbing, does not hurt nuts, without waste.
3. Mechanical driving, accuracy positioning, upper and nether moulds tight fit, makes super cereal bar shaping.
4. Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
5. Moulds and hopper are both non-sticky processed. All the parts may contacts food are all non-toxic material, oil and high temperature resistance.
6. Cooling conveyer can be customized as demand.

Technical Parameters for Cereal Bar Forming Machine



Output 5000-30000pcs/hr
Power 2.5kw
Product max thickness 2cm
Mould size 640 x 126mm
Effecitive mould size 540 x 126mm
Weight 1200kg
Dimension

5300 x 965 x 1850mm





Full information for Each Equipment as below:



1.Sandwich Pot (200L)


Characters:
Has large heating area, high thermal efficiency, even heating, liquid material boiling, time is short, easy to control the heating temperature etc..
Technical parameters:
Voltage:380V
Power:15kw
Volume:200L
Inner diameter of the boil:840mm
Outline dimension:905*990*1470mm
2.Mixer

Power:1.1kw
Voltage:380V/50HZ
Outline dimension:700*500*1200mm
Mix capacity:15KG/time
3.Full automatic cereal bar forming machine
This machine are suitable for flatting and cutting the muesli bar.Easy to operation.
Characters:

1.Frequency control,flatting and cutting for one time
With With multiple level structure, pressed flat, uniform thickness
2.With multiple flat structure,pressed flat,uniform thickness
3.Automatic cutting ,Time saving, labor saving, economical and convenient

Technical parameter:
Power:4kw
Voltage:380V/50Hz
Outline dimension:11800*1200*1200mm
Capacity:300kg/h

Automatic cutting ,Time saving, labor saving, economical and convenient
If you need to change another width size, only change the cutter shaft is ok


4.Horizontal packing machine with Date printer



This machine is suitable for packing long box Mihua Tang, Shaqima,

moon cake, biscuits, bread, rolls, pie, instant noodles, candy and other foods.



Technical parameters of horizontal packing machine :

Model LSU-220
Pack speed 50~150
Pack film width ≤250
Pack length 90-220
150-300
Can choose as your requirements
Power 2.5
Main motor power 0.75
Heating power 1.8
Weight of machine 450
Dimension 3800*780*1500
Noisy ≤75
Power 220V 50HZ
Material OPP PE PVC OPP/CPP PT/PE KOP/CPP







Machinery Show



Cereal Bar Making Equipment Bar Forming Machine With Siemens PLC 0
