Multi- function Germany motor double station Pressed Rawhide Bones

China Multi-  function Germany motor double station Pressed Rawhide Bones supplier
Multi-  function Germany motor double station Pressed Rawhide Bones supplier Multi-  function Germany motor double station Pressed Rawhide Bones supplier Multi-  function Germany motor double station Pressed Rawhide Bones supplier

Large Image :  Multi- function Germany motor double station Pressed Rawhide Bones

Product Details:

Place of Origin: Shandong, China
Brand Name: Darin
Certification: CE ISO
Model Number: DR-60T

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD17300~17500 Per set
Packaging Details: wooden case, which is suitable for long-distance transportation, multi-time loading & unloading for fork trucks.
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Brand Of Motor: Germany Motor Brand: Darin
Model: DR-60T Theory Output: Max. 60t
Layout: AutoCAD Layout As Client's Workshop Weight: 1800KG

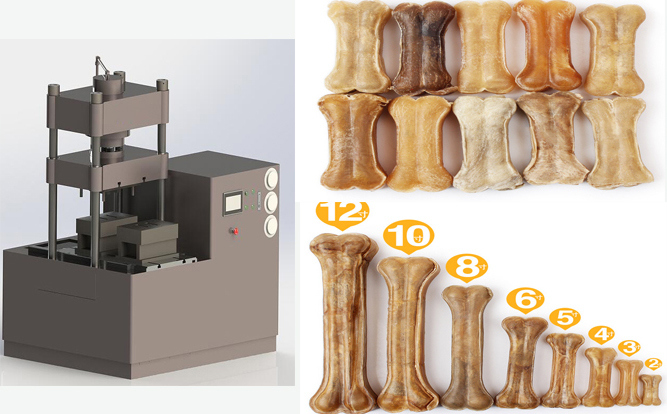

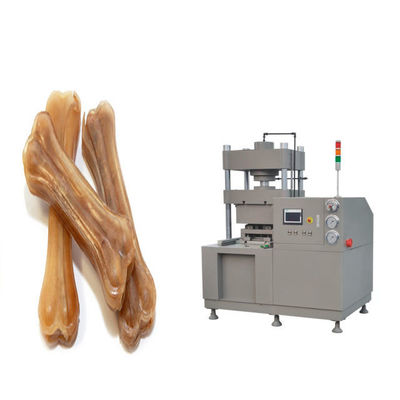

Multi- function Germany motor double station Pressed Rawhide Bones

Detailed product description

Rawhide pet bone pressing machine could produce pet chewing bone with cowhide, pigskin, beef tendons or sh-eepskin as material. It could press the material to be various shapes and sizes.

Introduction & Features:



Number                                                       Advantage
1

It is type of Flour Column and Three Board, the upmost output tonnage can be adjustable.

2

It can be adjusted among the range of 5t-60t according to the different products’ procedures, the purpose is to arrive the best required output.

3

Well, our DR-60T Pressing Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.

4

In addition, our DR-60T Pressing Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat

5

After pressing, the mold plate can be moved outside, so that it could well protect the operator’s safety

6

Machine with good safety design. While the workers place the materials or take out the final product, the bottom mold can be moved outward, so the workers is not under the upper mold. Only after the worker leave the machine, the machine should be allowed to start by pressing the two palm buttons.

7

quipped with PLC and touch screen to realize easy control. Different languages can be input as requirement (standard language is Chinese and English).


Why Choose Us?



Number                                                      Description
1

Germany motor, three years worldwide guarantee

2

Double-station, double molds, it can improve the efficiency

3 Touch screen with Schneider electric parts
4 Wide range of application, the material can be used cow hide,Sheepskin, pig skin,Fish skin.
5 You can adjust the size of your products, it is easy to change the molds
6 Simple operation with good safety protection


Raw materials:

cow hide,Sheepskin, pig skin,Fish skin.


Technical parameter



Model

DR-60T

Theory Output

Max 60t

Working Surface Size

                         Left and Right 500mm

                        Working Surface Size

                          Front and Back 400mm

        Height of Working Table to the Ground

                                        780mm

               Max. Stroke of Mobile Mould                                          350mm

                               Motor Power

                                        9KW

                                      Weight

                                       1800KG

                                   Dimension

                            2500 x 1200 x 1900mm


Commissioning Service

1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.

6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are on client’s account.


Multi-  function Germany motor double station Pressed Rawhide Bones
Multi-  function Germany motor double station Pressed Rawhide Bones
