Rawhide - Bones pet food processing equipment FOR chewing bone with cowhide

China Rawhide  - Bones pet food processing equipment FOR chewing bone with cowhide supplier
Rawhide  - Bones pet food processing equipment FOR chewing bone with cowhide supplier Rawhide  - Bones pet food processing equipment FOR chewing bone with cowhide supplier

Large Image :  Rawhide - Bones pet food processing equipment FOR chewing bone with cowhide

Product Details:

Place of Origin: China
Brand Name: Darin
Certification: CE/ISO9001
Model Number: DR-60T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-20000
Packaging Details: wooden case
Delivery Time: 25 working days
Supply Ability: 100sets/year
Contact Now
Detailed Product Description
Operation Manual: English Version Commissioning Service: Provided
Operation Panel: Touch Screen Motor: Germany Famous Brand
Guarantee: 1 Year Spare Parts: 1 Set

Product Description

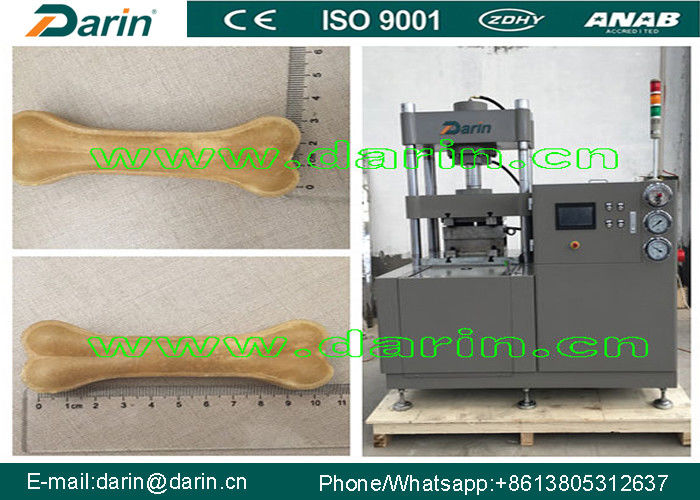

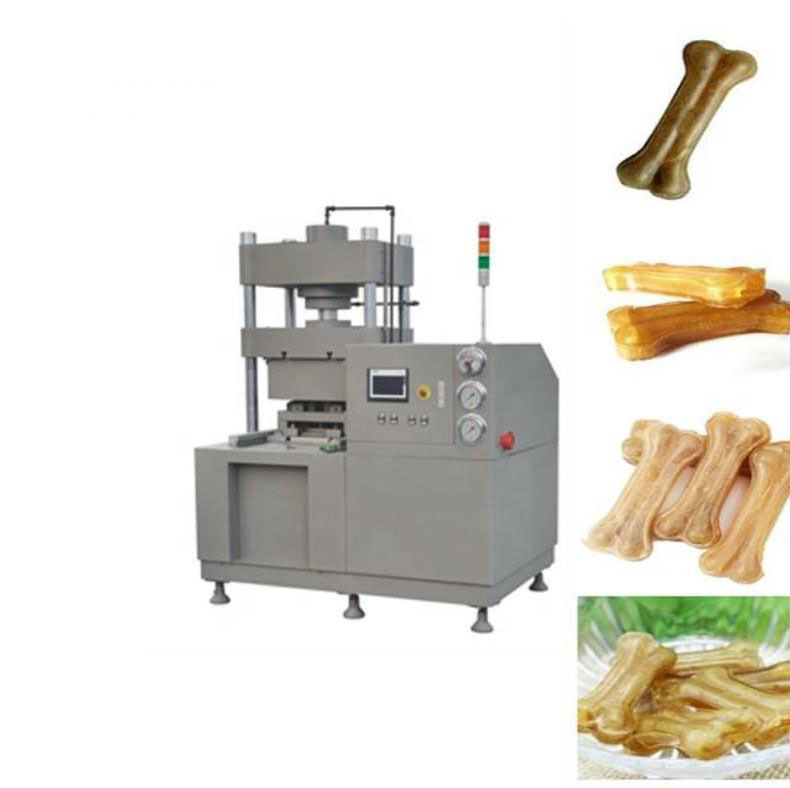

Cow Skin Dog Chews Bone Pressing Machinery could produce pet chewing bone with cowhide, pigskin or sh-eepskin as material. It could press the material to be various shapes and sizes.​

Features

1, This Punching Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.

2, It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).

3, Punching Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.


Technical Parameters

Project DR-60T
Liquid Pressure of Work (MPa) 14-21

Theory Output (Ton)
5-20

Working surface size (mm)
Left and Right 500

Working surface size (mm)
Front and Back 400
Height of Working Table Off the Ground(MM) 780
Biggest Operational Height(mm) 400
Close(mm) 200

Cylinder Stroke(mm)
200
Motor Power 5.5KW
Structural Style Flour Column Three Board
  Above Oil Cylinder

Power source
380VAC,50/60Hz
Weight 1108kg
Dimension 600*500*1780mm


Commissioning Service

1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.

6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are on client’s account.

Rawhide  - Bones pet food processing equipment FOR chewing bone with cowhide

Rawhide  - Bones pet food processing equipment FOR chewing bone with cowhide

Rawhide  - Bones pet food processing equipment FOR chewing bone with cowhide
