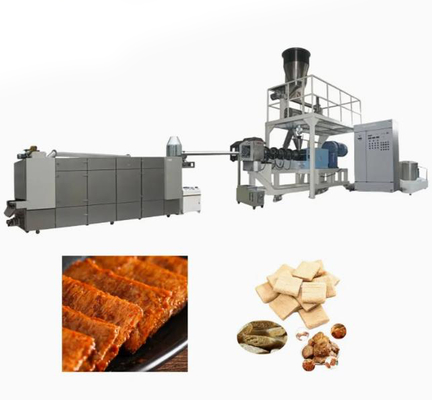

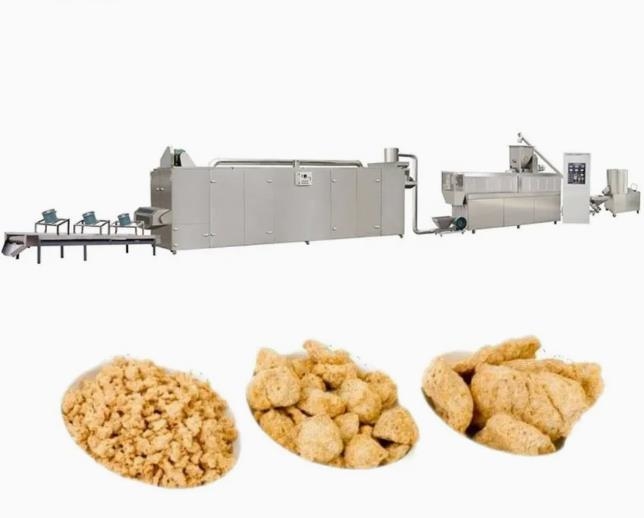

Automatic Soya Extruder Machine , 50HZ Food Extrusion Machine

Good quality Dog Food Extruder for sales
Good quality Dog Food Extruder for sales
We are very happy with the delivered machines from Darin. I recommend Darin as a business partner for the start-up of your production plant.

—— Mr. Roberto Biscotti of Italy

I can only say how very happy I am with this machine. It is cutting our labor cost in half and making our product the same size and shape every time.

—— Mr. James Urbanski of USA

The money you invest to Darin machines are much far less than that of other US or European machines and give you a big advantage against competition.

—— Mr. Gerard of Holland

I'm Online Chat Now

Automatic Soya Extruder Machine , 50HZ Food Extrusion Machine

China Automatic Soya Extruder Machine , 50HZ Food Extrusion Machine supplier
Automatic Soya Extruder Machine , 50HZ Food Extrusion Machine supplier Automatic Soya Extruder Machine , 50HZ Food Extrusion Machine supplier

Large Image :  Automatic Soya Extruder Machine , 50HZ Food Extrusion Machine

Product Details:

Place of Origin: CHINA
Brand Name: DARIN
Certification: CE ISO9001
Model Number: DR-65/70/85

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sets
Price: negotiation
Packaging Details: Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks.
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Product Name: Soya Protein Processing Line Application: It Used Soya Bean Powder Or Peanut Powder To Break Spherical Protein Molecule To Form Chain Protein Molecule, Thus Creating Slice-like Fiber Structure, By Powder-grinding, Stirring, High-temperature, High Pressured And High-cutting.
Condition: Continuous & Automatic Layout: AutoCAD Format According To Client’s Workshop
Manual: English Version Guarantee: One Year

Automatic Soya Extruder Machine , 50HZ Food Extrusion Machine





Brief introduction:

Protein extruder adopts the design of combined fuctional screws.The production parameters

can be controlled automatically and accurately. The line adopts low-temperature soybean meal,peanut meal,

wheat gluten etc .The protein extruded producing is strength,toughness .And the shape is various ,it can be

cylinder,flakes,the strips,rounded grain,square grain and so on.



1. Raw Materials: Low-temperature soybean meal,peanut meal,wheat gluten etc

2. Products: All kinds of protein with different shapes and types.
3. Capacity: 100-150KG/H ,200 -450KG/H,400-800 KG/H
4. Flow Chart: Mixing —Extruding —SpreadingBaking —Drying —Cooling

5.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ,

    also can make it according to customers' local voltage of different countries
6. Machines Materials: All the machines are made by food grade stainless steel.



Technical process:

1 Raw material mixer 2 Twin screw Extruder 3 air conveyor 4 five layers Oven



Technical Parameter of Soya Bean Protein Food Processing Line:



Model

DR - 65

DR - 85

Installed Power

105kw

150kw

Power Consumption

70kw

110kw

Production Capacity

200 - 260kg/h

500 - 600kg/h

Dimension

13x2x2.5 m

18x2x3.5 m




Our Services



Our Professional Service for Soya Bean Protein Food Processing Line:



1. Free consultation service before, during, and after sales;



2. Free Project planning and design services upon clients' special demands;



3. Debugging and inspecting of equipment until everything is functional before leaving the factory;



4. Overseas installation and training of equipment maintenance and operating personally;



5. Provide basic production techniques and formulas;



6. 1 year complete warranty for Soya Bean Protein Food Processing Line.





All inquiries are welcome.



FAQ:

 Why Choose us as a reliable Soya Bean Protein Food Processing Line supplier?

1. Advantage technology



2. High quality material



3. Tight quality control



4. Accurate maching



5. 7 - 24 hours service
