Maize flakes machinery / Corn flakes snack food production line

China Maize flakes machinery / Corn flakes snack food production line supplier
Maize flakes machinery / Corn flakes snack food production line supplier Maize flakes machinery / Corn flakes snack food production line supplier

Large Image :  Maize flakes machinery / Corn flakes snack food production line

Product Details:

Place of Origin: CHINA
Brand Name: DARIN
Certification: CE ISO9001
Model Number: DR-65/70

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases,
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Product Name: Maize Flakes Machinery / Corn Flakes Snack Food Production Line Application: Produces Corn Flakes, Breakfast Cereals, And Puff Snacks Similar To Kellogg And Nestle Products, The Shapes And Sizes Can Be Various.
Condition: New Layout: AutoCAD Format According To Client’s Workshop
Manual: English Version Standard: CE

Maize flakes machinery / Corn flakes snack food production line



Producion Introduction



Breakfast cereal corn flakes is a brittle food with good rehydration, outside the red is not bad, taste lubricants,grain flavor is fragrant.Corn flakes mainly corn flour as the main raw material,added sugar, vitamins,mixed raw minerals, add a sufficient amount of water after kneading, aging, forming, baking and tableting in order to manufacture a sheet flavoring.

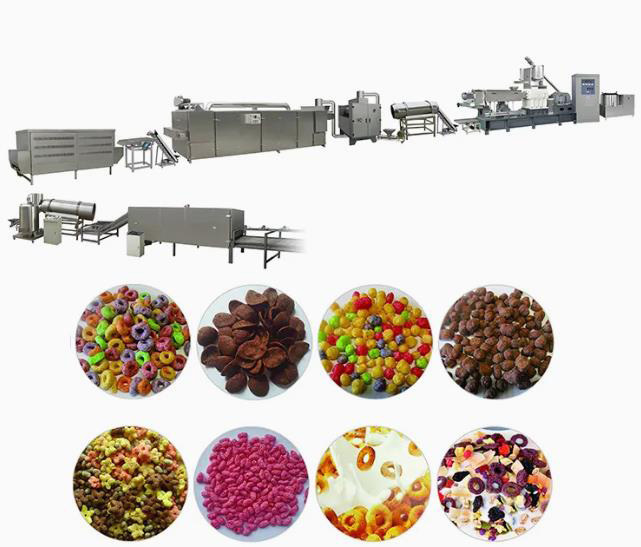

Machine Flow Chart



Mixing system---Extrusion system----Cooling system—Flaking system--Drying system—Toasted system---Sugar Spraying system ---Drying system---- Packing system



Machine Features



1.Mixer : Make the corn residue or corn flour added to a nutritional additive and mixing a proportion of water uniformly.



2.Screw conveyor : Marinated raw material fed to the extruder feed hopper.

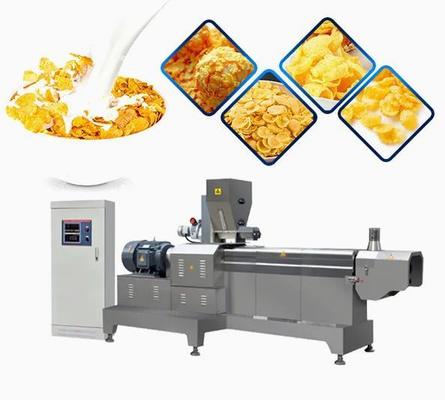

3.Double screw extruder: The material in the feed hopper into the extrusion system, to produce small  spherical particles.



4.Shaker: Dispersed particles, to avoid overlap pressed together into a tableting machine.



5.Air conveyor:Transported the particles into the tableting machine.



6. Flaking machine:Flaking the corn ball to raw corn flakes.



7.Air conveyor:Transfer the corn flakes to the baking oven.



8.Mutil-layer oven: Oven  mostly is toaster,temperature between 0-200 degrees self-regulation through the control cabinet,internal stainless steel double mesh bag,baking time may be adjusted according to the speed,remove the water.



 Technical Parameters



Model

Installed Power

Power Consumption

Output

Size(L×W× H)

DR65

275kw

193kw

120-150kg/h

39000x1200x2200mm

DR70

282kw

197kw

200~300kg/h

41000x1500x2200mm







FAQ
1.Where is your company situated?

Our factory located in Jinan, Shandong Province, China.
You can take plane to Jinan International Airport, or take high-speed rail to Jinan West
Station , Jinan Station ,we will pick you up to our factory.

2.What is your payment term?

You can transfer the payment via T/T.  Generally, 30% advance to start to produce,
70% balance should be paid before shipping.

3.  What capacity do you want ?

We have different capacity like 100kgs/hr. Please tell your requirement about the capacity so will make exact quotation for you.


If you are interested in our machine , please contact me .
