Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT

China Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT supplier
Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT supplier Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT supplier Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT supplier Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT supplier

Large Image :  Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT

Product Details:

Place of Origin: China
Brand Name: DARIN
Certification: CE/ISO9001
Model Number: DRC-75

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 35-45 working days
Payment Terms: T/T, L/C, D/P or Western Union
Supply Ability: 99 sets per year
Contact Now
Detailed Product Description
Name: Rollers Flattening And Cutting Peanut Candy Bar Making Machine Material: SUS304
Condition: Continuous & Automatic Manual: English Version
After-sales Service: Full Life Layout: AutoCAD Format According To Client’s Workshop

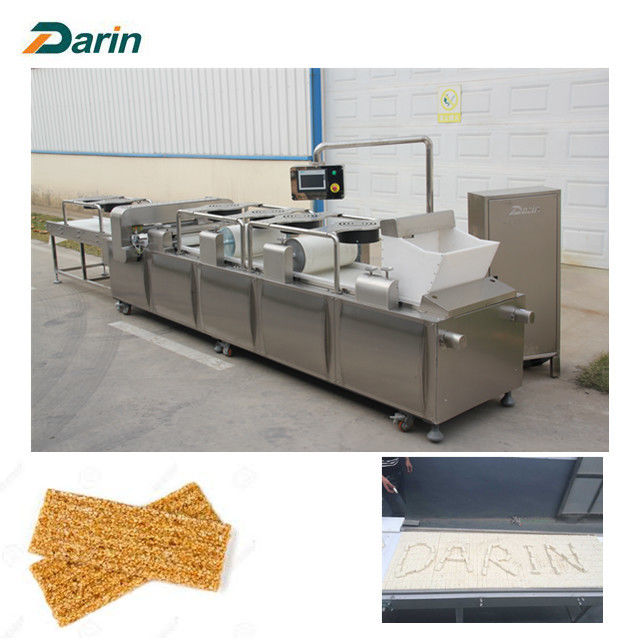

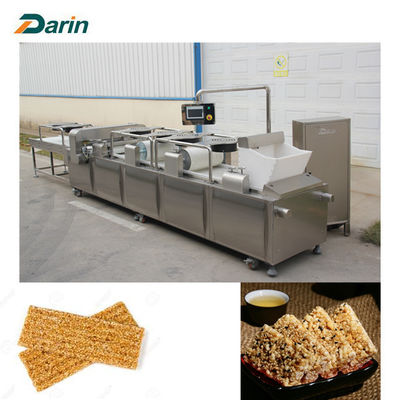

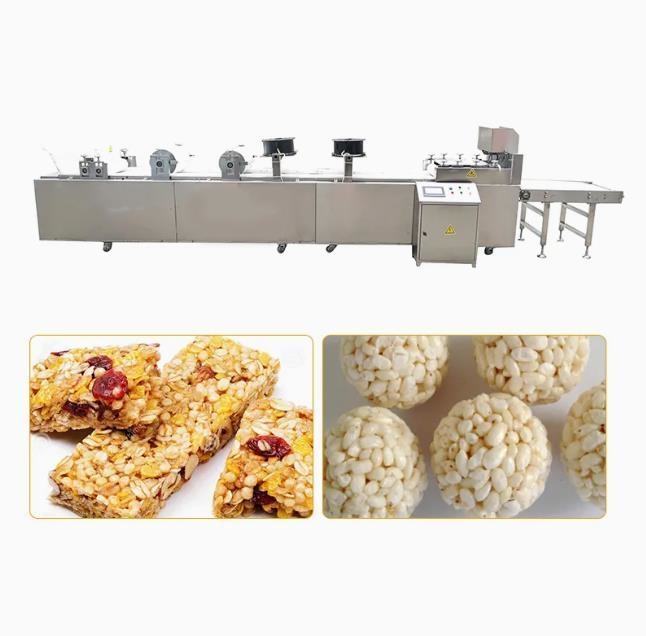

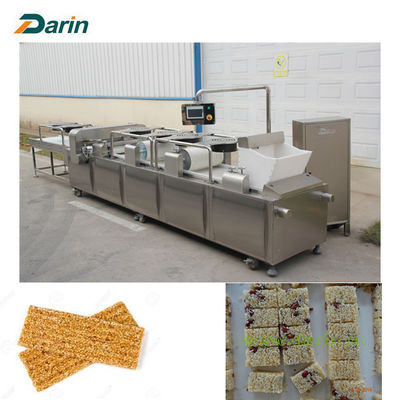

Muesli Bar Cutting Machine Granola Bar cutting machine with New PATENT


Introduction



1. Museli Bar Making Machine is mainly used to cut the mixed cereals products into required sizes and cool them down.



2. Museli Bar Making Machine is controlled by two inverters which allow it finish the cross cut by one machine.

3. Museli Bar Making Machine make the mixture quite flat and stick to each other tightly, avoid splitting.



4. PLC Touch Screen controller box of Cereal Bar Cutting Machine allows operator to set the required cutting length and width in advance, quite simple to operate.



5. Machine parts which contact the foods are made of food grade plastic, and the machine body cover is made of stainless steel which is all suitable for food processing safety.



6. Cooling conveyer can be customized as demand.

Technical Parameters



Output Installed Capacity Voltage / Frequency Dimension Workers Required
300-400kg/hr 9kw 380V 50Hz

6650 x 1310 x 2000mm

3-4 workers

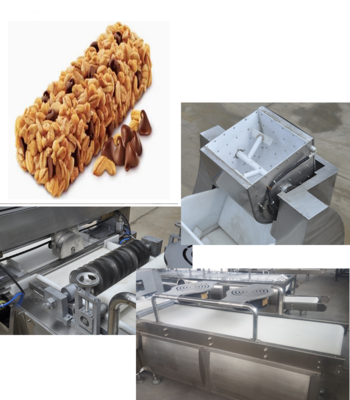

Features


1. The DRC-75 Cereal bar cutting machine added mixer machine above the feeder. The machine come true the automatic mixing the raw material and pour the raw material to feeder. Mixer machine have the heat preservation function and could set the mixer time.
2. The feeder of DRC-75 cereal bar cutting machine have the function of keeping the raw material warn to advoid mixed material cold and soildfication.
3. DRC-75 cereal bar machine use the PTFE belt. This belt have the feature of anti-sticking, better tenacity and not easy to damage.
4. The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.
5. We added extra two sets of fans above the conveyor to cool the cereal bar quickly and become hard soon.
6. The cutter in the longitudinal direction take the cutter groove design. It will make sure the cereal bar be cutted 100% , no sticking and separate automaticly.



Our service

1. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

2. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

3. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.

4. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.

Sample:

Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT



Fairs in the second half year of 2017.

Muesli Cereal Bar Making Machine Granola Bar cutting machine with New PATENT
