Healthy Chikki Bar / Healthy Cereal Bar Making Machine

Healthy Chikki Bar / Healthy Cereal Bar Making Machine

Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: DRC-75

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD
Packaging Details: export wooden cases
Delivery Time: 45 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 99 sets per year
Get Best Price Contact Now

Detail Information

Name: Healthy Chikki Bar/Healthy Bar/Energy Bar Processing Equipment Material: Stainless Steel 304
Recipe: Fee Of Charge After-sales Service: Full Life
Layout: Auto CAD Format According To Client's Workshop Output: 400-600kg/hr
High Light:

chocolate Bar Making Machine

,

granola bar machine

,

Chikki Cereal Bar Making Machine

Product Description

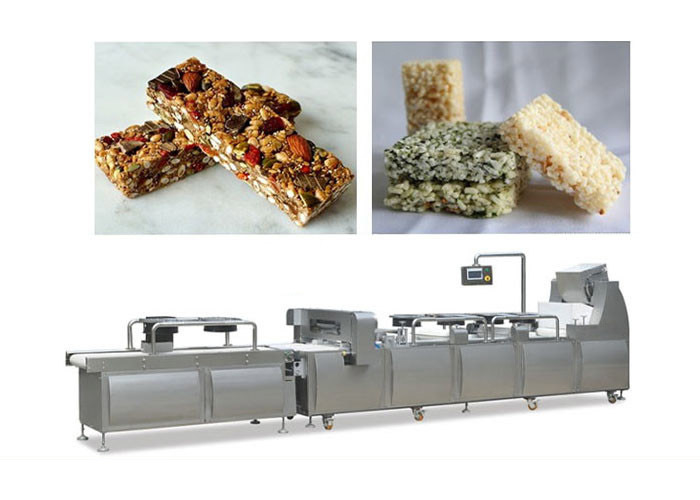

Healthy Chikki Bar/Healthy Bar/Energy Bar Processing Equipment





Introduction

1,

The DRC-75 Cereal bar cutting machine added mixer machine above the feeder. The machine come true the automatic mixing the raw material and pour the raw material to feeder. Mixer machine have the heat preservation function and could set the mixer time.

2

The feeder of DRC-75 cereal bar cutting machine have the function of keeping the raw material warn to advoid mixed material cold and soildfication.

3

DRC-75 cereal bar machine use the PTFE belt. This belt have the feature of anti-sticking, better tenacity and not easy to damage.

4

The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.

5

We added extra two sets of fans above the conveyor to cool the cereal bar quickly and become hard soon.

6

The cutter in the longitudinal direction take the cutter groove design. It will make sure the cereal bar be cutted 100% , no sticking and separate automaticly.

7

The cutter in the horizontal direction could continually automatic cut, no stop. At the same time , the capacity increased from 300kg/hr to 500kg/hr.

8,

The useful width of cereal bar cutting machine is 540mm.

9,

The connection of forming part and conveyor part use the gear drive, it is easy installment and disassembly.

10

DRC-75 Cereal bar cutting machine use the WEG motor, Siemens Brand touch scree, international famous electric parts. Good quality and good guarantee.

11

The staff could 180 ° rotation operation the PLC touch screen, flexible and convenient.



Standard Specifications



Motor WEG or Siemens Mixing Tank and Conveying Belt HMWHDPE
PLC & Touch Screen Siemens Mixing Blade, Mold and Hopper Blade PTFE
Electric Parts ABB or Schneider Cover Body Stainless Steel


Technical Parameters



Output Installed Capacity Voltage / Frequency Dimension Workers Required
400-600kg/hr 15.2kw 380V 50Hz 6.65 x 1.31 x 2m 3-4 workers



Features


1. Mechanical driving, accuracy positioning, upper and nether moulds tight fit, makes super cereal bar shaping.
2. Mechanical pressing & rubbing, does not hurt nuts, without waste.
3. aplied to peanut candy, rice flower sugar, Mi Tong, melon seeds, sugar, etc.
4. Cooling conveyer can be customized as demand.
5. Hopper and convryor are both non-sticky processed. All the parts may contacts food are all non-toxic material, oil and high temperature resistance.
6. Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.



Our service

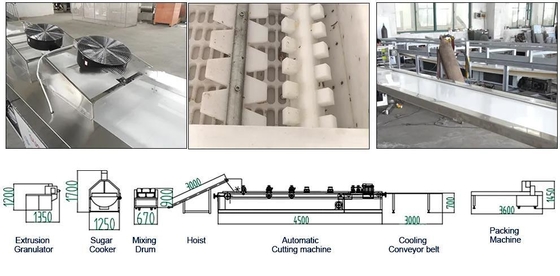

1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.

6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
