Rice bar puffed rice / dates / Cereal Bar Making Machine SUS304 material

China Rice bar puffed rice / dates / Cereal Bar Making Machine SUS304 material supplier
Rice bar puffed rice / dates / Cereal Bar Making Machine SUS304 material supplier Rice bar puffed rice / dates / Cereal Bar Making Machine SUS304 material supplier

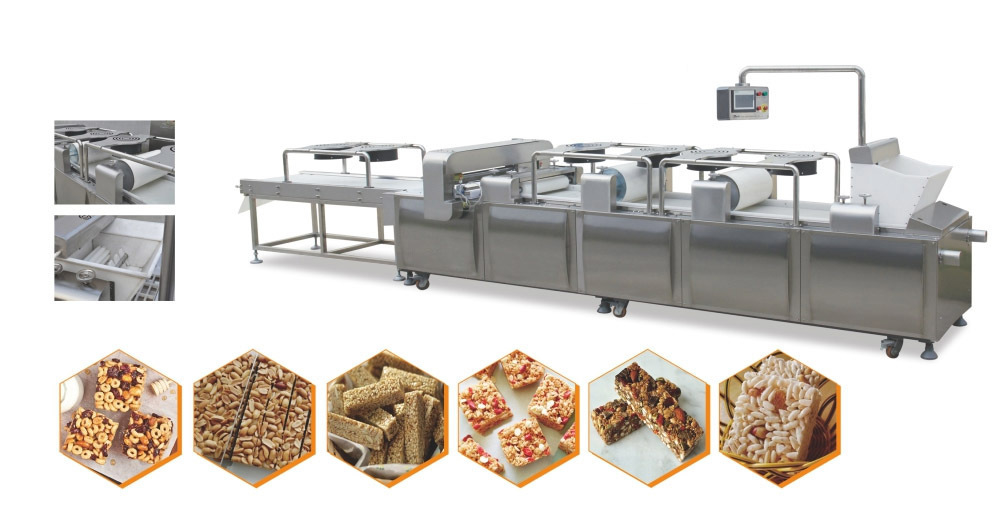

Large Image :  Rice bar puffed rice / dates / Cereal Bar Making Machine SUS304 material

Product Details:

Place of Origin: China
Brand Name: DARIN
Certification: CE/ISO9001
Model Number: DRC-75

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 35-45 working days
Payment Terms: T/T, L/C, D/P or Western Union
Supply Ability: 99 sets per year
Contact Now
Detailed Product Description
Name: Rollers Flattening And Cutting Peanut Candy Bar Making Machine Material: SUS304
Condition: Continuous & Automatic Manual: English Version
After-sales Service: Full Life Layout: AutoCAD Format According To Client’s Workshop

Rice bar puffed rice/dates/sesame bar cutting machineSUS304 material


Introduction

1,

The DRC-75 Cereal bar cutting machine added mixer machine above the feeder. The machine come true the automatic mixing the raw material and pour the raw material to feeder. Mixer machine have the heat preservation function and could set the mixer time.

2

The feeder of DRC-75 cereal bar cutting machine have the function of keeping the raw material warn to advoid mixed material cold and soildfication.

3

DRC-75 cereal bar machine use the PTFE belt. This belt have the feature of anti-sticking, better tenacity and not easy to damage.

4

The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.

5

We added extra two sets of fans above the conveyor to cool the cereal bar quickly and become hard soon.

6

The cutter in the longitudinal direction take the cutter groove design. It will make sure the cereal bar be cutted 100% , no sticking and separate automaticly.

7

The cutter in the horizontal direction could continually automatic cut, no stop. At the same time , the capacity increased from 300kg/hr to 500kg/hr.

8,

The useful width of cereal bar cutting machine is 540mm.

9,

The connection of forming part and conveyor part use the gear drive, it is easy installment and disassembly.

10

DRC-75 Cereal bar cutting machine use the WEG motor, Siemens Brand touch scree, international famous electric parts. Good quality and good guarantee.

11

The staff could 180 ° rotation operation the PLC touch screen, flexible and convenient.


Technical Parameters



Output Installed Capacity Voltage / Frequency Dimension Workers Required
300-400kg/hr 9kw 380V 50Hz

6650 x 1310 x 2000mm

3-4 workers



Features


1. Mechanical driving, accuracy positioning, upper and nether moulds tight fit, makes super cereal bar shaping.
2. Mechanical pressing & rubbing, does not hurt nuts, without waste.
3. aplied to peanut candy, rice flower sugar, Mi Tong, melon seeds, sugar, etc.
4. Cooling conveyer can be customized as demand.
5. Hopper and convryor are both non-sticky processed. All the parts may contacts food are all non-toxic material, oil and high temperature resistance.
6. Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.



Our service



1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.


Samples

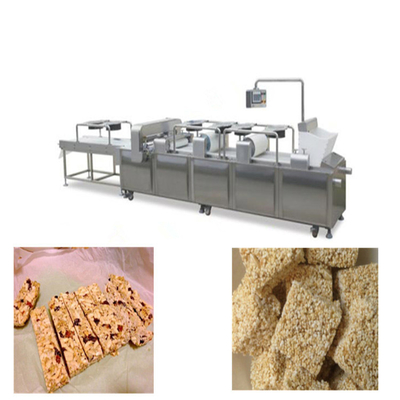

Rice bar puffed rice / dates / Cereal Bar Making Machine SUS304 material
