Automatic Cereal Bar Making Machine

China Automatic Cereal Bar Making Machine supplier
Automatic Cereal Bar Making Machine supplier Automatic Cereal Bar Making Machine supplier Automatic Cereal Bar Making Machine supplier

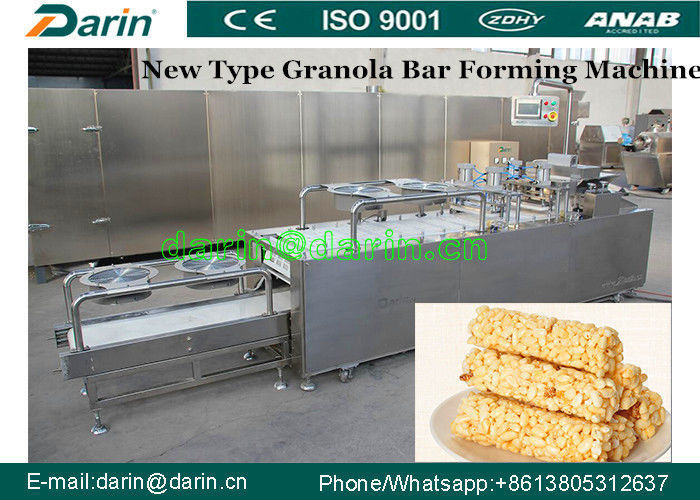

Large Image :  Automatic Cereal Bar Making Machine

Product Details:

Place of Origin: Jinan China
Brand Name: Darin
Certification: CE ISO9001:2008
Model Number: DRC-65

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: USD 21000~ USD 35000
Packaging Details: We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading.
Delivery Time: 45 working days after receiving the down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets per year
Contact Now
Detailed Product Description
Condition: New Name: Automatic Cereal Bar Forming Machine For Various Shapes Cereal Bars Production With CE Certificate
Material: SUS304 Brand: Darin
Capacity: 300~500kg Per Hour After-sales Service Provided: Engineer Available To Service Machinery Overseas
Warranty: 12 Months Warranty


Automatic Cereal Bar Forming Machine for Various Shapes Cereal Bars Production With CE Certificate

1. The shapes can be round, cylindrical, square, semi round, triangular and blossom, etc.
2. Mechanical pressing & rubbing, does not hurt nuts, without waste.
3. Mechanical driving, accuracy positioning, upper and nether moulds tight fit, makes super cereal bar shaping.
4. Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
5. Moulds and hopper are both non-sticky processed. All the parts may contacts food are all non-toxic material, oil and high temperature resistance.
6. Cooling conveyer can be customized as demand.


Product Description


1. The machine type in the lastest designed forming machine.It can change different moulds and produce various shapes of products.

2. Various shapes of products

3. Using mechanical soft pressure ,shape is beautiful , no damages , and no wastes .


4. Positioning is precisely ,shaping is very good

5. Using high quality converter ,having high efficiency,24 hours working.

6. All the moulds and hopper with anti-stick disposal.

7. All the links contacting the goods are nonpoisonous and harmless.

8. The length of the cooling conveying links can be changed and cooling fan can be equipped based as required ,so as to enhance the cooling effect;



Product Specification



Cereal Bar Forming Machine Automatic Cereal Bar Making Machine
Model NO: DRC-65
Mould size: 640*126mm
Forming Area: 509*173mm
Mould Quantity: 36 pieces + 1 pressing mold + 1 demoulding mold
Speed: <80p/min
Capacity: 2Tons/8Hours
Dimensions: 3600*1000*1500mm
Weight: 1200KG
Mixer: yes
Self-heating Function(Mixer): yes
Easy Cleaning: yes
Saving material: YES
Automatic: YES
Upside down ability (Mixer): NO
Connect to the packaging machine: YES
Saving work: YES
Stainless Steel: YES
Workers: 2
Clean with water YES


Aplied object:


Puffed / baked Cereals ,sugar, syrup, oil,sesame,peanut ,chocolate ,honey,fruit peaces,protein,salt,etc

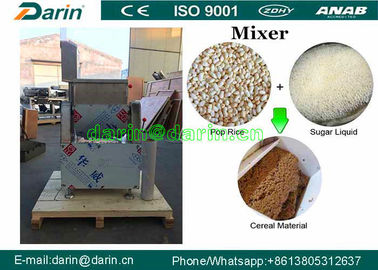

-----Mixing : Boil syrup,sugar,oil ;then mix all the materials in mixer


-----Feeding : Feed the mixed material into the moulds


-----Pressing : Press the materials in the moulds ,shape it .


-----Cooling : Using powefull fans to cool the shaped candy cake


-----Demoulding: Take the candy cakes off the moulds




------1. It can make special shapes of cereal candy bars other than cutting machines.

-------2. Candy bars produced by this machine are harder to broke.


-------3. This machine use stainless steel ,having longer life


-------4. This machine can use water to clean it .


-------5. High capacity up to 2 Tons/8 hours


-------6. Self heating function (MIXER).





Packaging : International wooden case,also can be OEM.


Delivery :20 working days or according to the contract.


After sale services



----Internal customer :We can offer 1 year free door service ;



----Oversea customer :We can offer free training and send engineer to offer service.

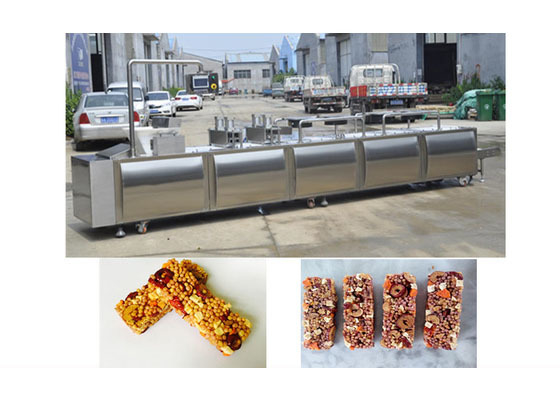

Product Show:

Automatic Cereal Bar Making Machine
