dog chews processing line making machine cheap price/dog food extruder

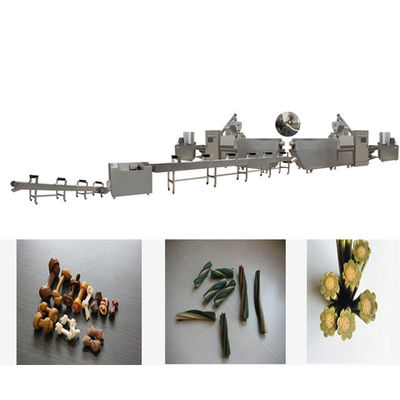

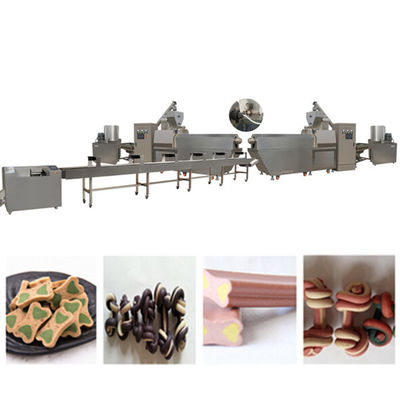

DRD-100Pet Treats Extruding Line can produce dog chew snacks and semi moist pet food. It combines two processing lines into one. With different moulds, various shapes can be made, such as strip, stick, screw shape, etc. Also, we can provide all kinds of recipe to make different tastes to full the demands of pet both for nutrition and chewing hobby. Flow chart: Raw Material Mix – Screw Conveying – Extruding – Cooling – Cutting – Cooling
1) Capacity: 150kg/hour
2) Raw material: Corn Starch, Meat Powder.
Flow chart: Raw Material Mix – Screw Conveying – Extruding – Cooling – Cutting – Drying -- Cooling
Flour Mixer is used to mix the raw material, like corn flour, rice flour, fish bone flour, ox bone flour with liquid and other additives.
BFD-85 Double Shaft Mixer is used to mix the sticky raw material.
Screw Conveyer is used to the convey the materials to the feeder of the extruder.DRD-100 Single Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by one screw composed by sectional modules for the following functions: forward and backward transport, mixing, feeding of additives, injection of liquids, de-gassing, cooking and forming.
LQX8 Cooling Conveyer is to cool down the extruded chewing bone.
Cutting Machine is for cutting the pet treats as required length.
LQX-5 Cooling conveyer is used to cool the pet snacks after cutting, ready to be roasted in the oven.
- All kinds of perfectly shaped non-crumbing chew snacks in a variety of color combinations.
- Max. 3-color chew snacks can be produced.
- Various shapes can be made, such as strip, stick, bone, screw shape, etc.
- Many kinds of recipes to make different tastes to meet different market demands.
- Turnkey project provided, from raw materials to packing procedures, fully continuous and automatic.
- Fully stainless steel 304.
Voltage / Frequency
380V / 50Hz
10 x 5 x 3m
Jinan Darin Machinery Co.,Ltd. an ISO9001 certified enterprise, specialized in development and sales of pet food machinery and relative packing machine. After years of development, Darin has established a mature sales and agency network. Darin machine runs in more than 50 countries including USA, Germany, Italy, Span, Holland, Australia, Brazil,Mexico, Egypt etc. All Darin machines are CE certified with premium quality and stable performance.
Commissioning & After-sales Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After receiving firm order and down payment, we start to apply for the Visa to your country immediately; while the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. At buyer's request,1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line..
5. Our engineers can provide basic formula for the production, and help the customer to produce good quality food according customer’s detailed formula.
6. It normally costs 10-14 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
