Automatic Pet chewing Auto Meat Strips Dog Treats Processing Line

Automatic Pet chewing Auto Meat Strips Dog Treats Processing Line

Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE ISO9001
Model Number: DR-220

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: USD
Packaging Details: We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading.
Delivery Time: 45 working days after receiving the down payment
Payment Terms: T/T, L/C, Western Union, D/A
Supply Ability: 50 Sets per year
Get Best Price Contact Now

Detail Information

Material: SUS304 Usage: Meat Strips Dog Treats
Warranty: 1 Year Capacity: 300~500kg Per Hour
Power: 20kw Dimension: 14*6*3m
Worker Needed: 2~3 Workers Original: Jinan Darin
High Light:

dog food production line

,

pet food processing line

Product Description

Automatic Pet chewing Auto Meat Strips Dog Treats Processing Line



Automatic Pet chewing Auto Meat Strips Dog Treats Processing Line 0



Product Application

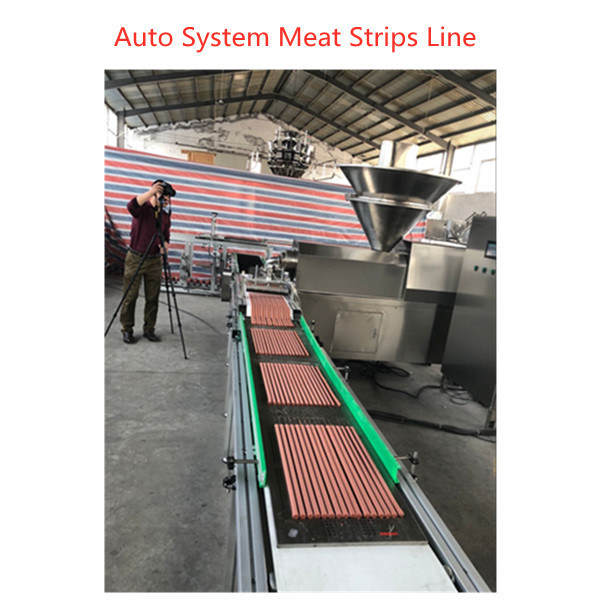

Auto Meat Strip Processing Line is an auto processing line can produce dog treat type meat strip. It combines two processing lines into one. With different moulds, various shapes can be made, such as strip, stick, screw shape, etc. Also, we can provide all kinds of recipe to make different tastes to full the demands of pet both for nutrition and chewing hobby.

Features & Advantages





It is first processing line to produce meat strip automatically and continuously.

The diameter and shape of meat strips can be various by changing the molds.

Fully controlled by PLC and touch screen to reduce the labor cost, 2-3 workers are needed to operate the whole line.

The characteristics is discharging speed, output evenly, can infuse bowel flesh lump, can also be used to fill the mi bowel, flexible, convenient and free loading, high efficiency, continuous production capacity, and cleaning convenient, suitable for various types of production enterprises.

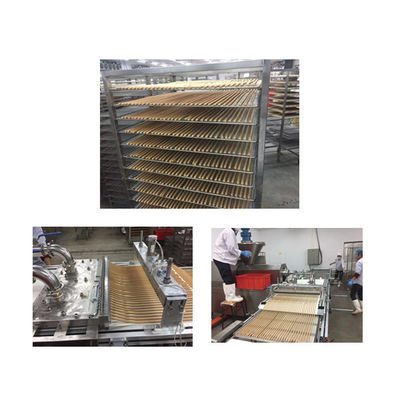

Automatic Pet chewing Auto Meat Strips Dog Treats Processing Line 1

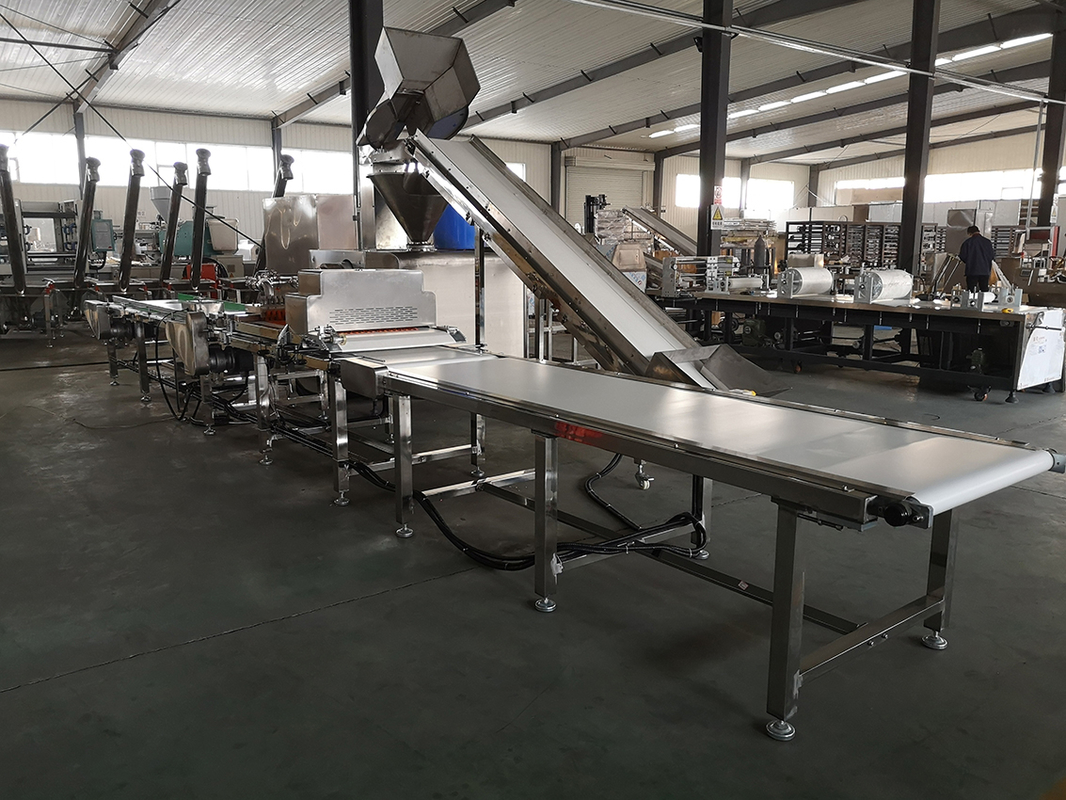

Automatic Pet chewing Auto Meat Strips Dog Treats Processing Line 2

Flow Chart:



Forming Pre-cutting
Loading Drying
Cutting                                                              Packing



Technical Parameters



Output Power Required Worker Voltage / Frequency Dimension
300-500kg/hr 22kw 2~3 380V / 50Hz 15 x 6 x 3m

Factory & Office




Pet Treats / dog Chews pet food extrusion process equipment Multipurpose Pet Chews

Commissioning Service

1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.

6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are on client’s account.
