CE Approved Corn Snacks Food Double Screw Extruding Line Manufacturer

China CE Approved Corn Snacks Food Double Screw Extruding Line Manufacturer supplier
CE Approved Corn Snacks Food Double Screw Extruding Line Manufacturer supplier CE Approved Corn Snacks Food Double Screw Extruding Line Manufacturer supplier

Large Image :  CE Approved Corn Snacks Food Double Screw Extruding Line Manufacturer

Product Details:

Place of Origin: CHINA
Brand Name: DARIN
Certification: CE
Model Number: DR-65/70/85/90

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks.
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Name: CE Approved Corn Snacks Food Double Screw Extruding Line Manufacturer Dimension(L*W*H): 2150*1500*2300
Voltage: 380v, 50hz, 3phases (adjustable) Warranty: 12 Months
Applied: Corn Puff Snack Extruder Material: SS304
Manual: English Version Capacity: 120-150kg/h,200-250kg/h,400-500kg



CE Approved Corn Snacks Food Double Screw Extruding Line Manufacturer



Description



  • Snack Food Processing Line, Made from Twin-screw Extruder, with High Automatic and Low Power
  • Output: different
  • Snack Food Processing Linecan take corn, rice, wheat, oat, rye and other grains as materials to produce extruded snacks, with crispy taste and lively shape
  • Snacks food processing line is designed according to market demand
  • It includes cheese balls, corn curls, corn sticks, coco pops, cereal, kukure and pellets
  • Saibainuo twin-screw snack extrusion lines offer unique advantages for snack processors, including:
  • Simple operation with repeatable results
  • Infinitely variable production parameters to achieve specific texture, density and mouthful requirements
  • Advanced technology to process bi-color and bi-texture snacks
  • Ingredient flexibility to process virtually any cereal grain and granulation
  • True process flexibility with modular, segmented barrel design plus quick change die and cutter designs to quickly adapt to product trends



No.                                                                      Features
1

The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel

and screw, when roasting or replacing of materials.

2 The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
3 Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
4 Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5 The gearbox has automatic lubrication function, with extends gear life.
6 Main Motor from SIEMENS(CHINA), ensure its Powerful Extrusion and Excellent Performance.





No,                                                                    Advantages
1 Motors are from WEG, Germany, which has 3-year world-wide guarantee;
2 Electric parts are from ABB or Schneider, easy to find replacments at local market;
3 PLC and touch screen are from Siemens, Germany to realize easier operation and less labor quantity;
4 PLC and touch scrren controls whole processing line, not one or two single equipment;
5 While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;
6 Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;
7 Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector;
8 All the cover body, mesh belt and parts touching with materials or final products are made by stainless steel 304.



SnacFood Extruder/Puff Snack Food Machine

Snacks Food Extruder/Puff Snack Food Machine

Products:

Snacks Food Extruder/Puff Snack Food Machine

Variety shapes are available for ball, tube, stick, ring, fruit loop, car, bear,star, wheel and flower and heart shape by changing the mould in the extruder. We will design and make the moulds according to your requirement after the order.

Corn Snacks Puffing Machine

Capacity

Snacks Food Extruder/Puff Snack Food Machine

150kg/h, 250kg/h, 500kg/h

Corn Snacks Food Extruder

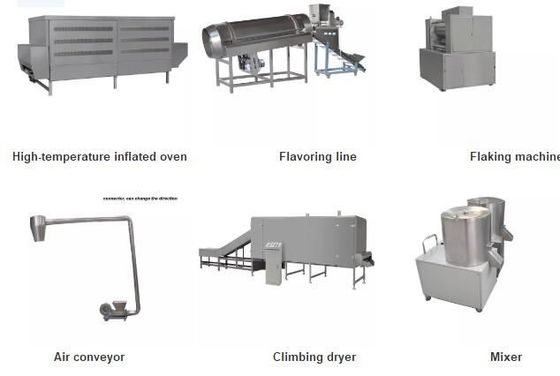

Flow chart

Snacks Food Extruder/Puff Snack Food Machine

Mixing system---Extruder---- -Roasting system----Flavoring system---Packing system(Optional)



Our service


Before During After
1. According to the clients'special requirement, offering the reasonable plan and free design helping to select the equipment. 1..Inspect the machine before leaving the factory. 1. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa and a nominal $100 daily subsidy per person.
2.Provide the standard device and the flow chart 2.Welcome to visit our factory or the domestic clients factory. 2. Provide the basic formula
3.Provide the free consultation of the equipment 3Help client design the factory and offering professional advice, free engineering drawing for the factory layout. 3. Train the first-line operator.
    4. Operation/ Service/ Maintenance Manual: Provided In English.
    5. Oversea install and debug the equipment.

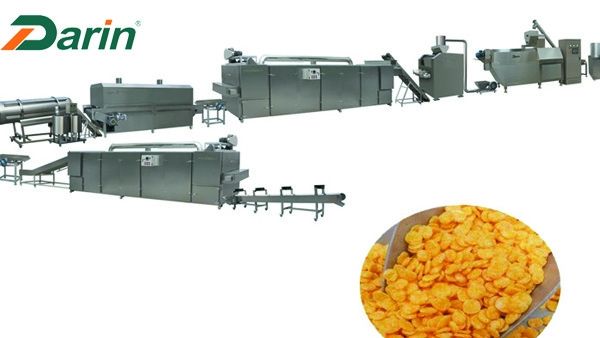

Puffed Corn Snacks Food Production Chain

Machines Materials:

Corn Snack Extrudeuse Machine

a. Screws: 38# CrMOALA

b. Parts where touch food: Food grade stainless steel.

Snack Food Extrudeuse Machine

Technical Parameters



Model

Capacity

Power

Dimension

DR-65

120-150kg/hr

70kw

22 x 5 x 3m

DR-70

200-260kg/hr

90kw

24 x 5 x 3m

DR-85

300-500kg/hr

120kw

30 x 5 x 3m



FAQ

1. What's payment terms, trade terms you accept?

Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer FOB QINGDAO price. Also accept other ways like L/C.

2. Does it easy to operate and what can i do if it doesn't work?

First, our machine is stable and easy to operate by one man, what you do is just operate the PLC clean the machine regularly. And we will sent you manual and video for helping to learn the machine.
If there is something goes wrong, you can call us, video-chat, e-mail us. And we will give you solutions ASAP. Our engineer also can be distributed to overseas as you required.

3. Why choose us?

Don't you think they are looking good and suitable to your requirement? Why will you choose us? As we are
specializing in these products for more than 17 years with high quality and competitive price as well as our service, being high evaluation by our clients.

All our machines are CE certified and all the machines have been exported to overseas countries and wildly used in food and chemical industry sector etc.

We sincerely welcome customers from all over the world to establish and develop long-terms cooperation relationships on the basis of equality and mutual benefits.
