Create Reliable Machine For Whole World, Now or Never!
| Place of Origin: | China |
|---|---|
| Brand Name: | Darin |
| Certification: | CE/ISO9001 |
| Model Number: | DM-268B |
| Minimum Order Quantity: | 1 set |
| Price: | 48000USD |
| Packaging Details: | wooden case |
| Delivery Time: | 35 working days |
| Supply Ability: | 100 sets per year |
| Application: | Pet Food | Product Name: | Injection Molding Snack Food Extruder Machine |
|---|---|---|---|
| Mold: | Various Shape | Recipe & Formula: | Provide Free Of Charge |
| Training: | Provide By Technician In Commissioning Service | Guarantee: | One Year |
| High Light: | animal food making machine,dog treat making machine |
||
Teeth Clean dog food manufacturing equipment / Molding Machine
Product Specification
Injection Dog Snack Moulding Machine is special machinery for producing pet snacks.
With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.
The shapes are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games.
Also, we can provide different recipes to meet various market demands.

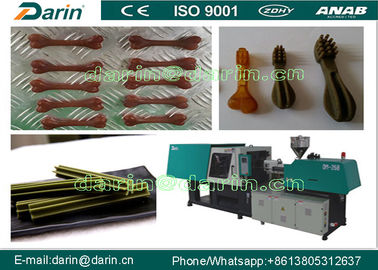

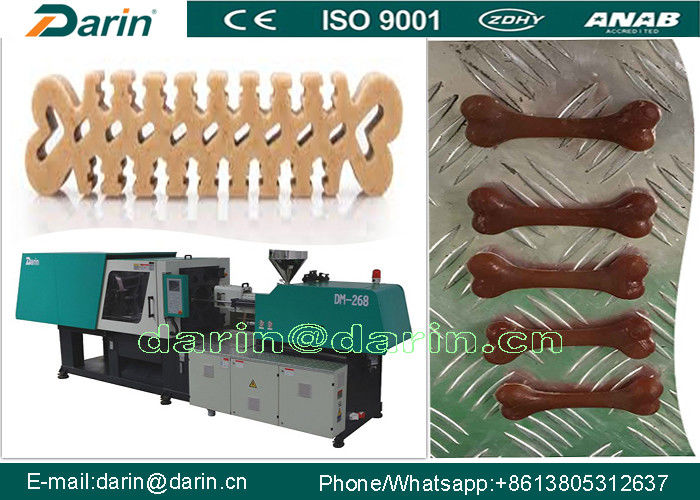

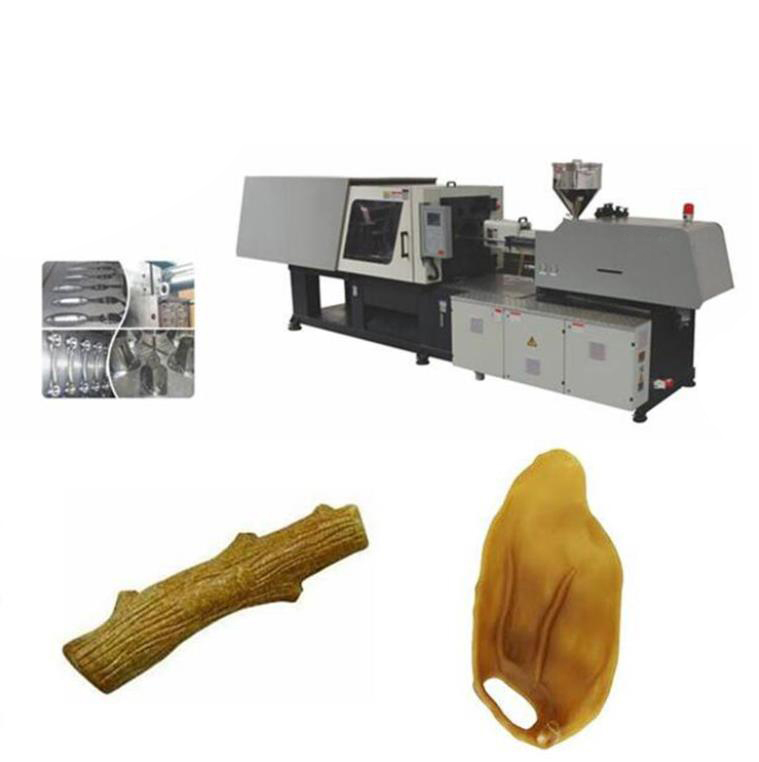

Sample Picture
| Model | DM-268 |
| Screw diameter | 60mm |
| Screw L/D Ratio | 18.8 |
| Short volume | 707mm |
| Short Weight | 636g/22.4oz |
| Injection pressure | 142Mpa |
| Injection rate | 239g/s |
| Plasticizing capacity | 49g/s |
| Screw speed | 180rpm |
Technical Parameter
1. It comes with user-friendly microprocessor controller with these following features;
2. Dust, oil proof and colorful touch switch control panel.
3. El display of pressure, speed, time and distance for each motion.
4. Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
5. PID barrel temperature control: temperature abnormal & electrical wire disconnection alarm.
6. SSR-solid state temperature controller.
7. Screw cold start protection.
8. Abnormal shot detection.
9. Output quantity and packaging quantity preset.
10. Clamping, injection and ejection (option), and carriage action (option) by linear potentiometer.
Factory & Office
Commissioning Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are on client’s account.
