100kg/h Capacity Pet Dog Food Extruder Machine , Dog food manufacturing equipment

China 100kg/h Capacity Pet Dog Food Extruder Machine , Dog food manufacturing equipment supplier
100kg/h Capacity Pet Dog Food Extruder Machine , Dog food manufacturing equipment supplier 100kg/h Capacity Pet Dog Food Extruder Machine , Dog food manufacturing equipment supplier

Large Image :  100kg/h Capacity Pet Dog Food Extruder Machine , Dog food manufacturing equipment

Product Details:

Place of Origin: SHANDONG
Brand Name: DARIN
Certification: CE/ISO9001
Model Number: DRD-100/300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case, which is suitable for long-distance transportation, multi-time loading & unloading for fork trucks.
Delivery Time: 45 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 SET/Year
Contact Now
Detailed Product Description
Name: Pet Treats Extruder Power(W): 145kw
Spare Parts: 1 Set Type: Animal,pet,dog,cat Food Machine
Output: 100kg/hr Material: Food Grade Stainless Steel
After-sales Service: Full Life Moulds: 6 Free Moulds

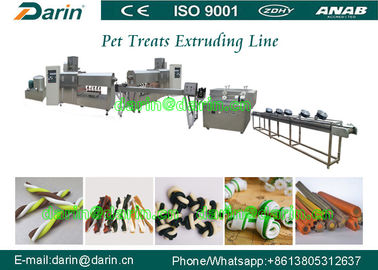

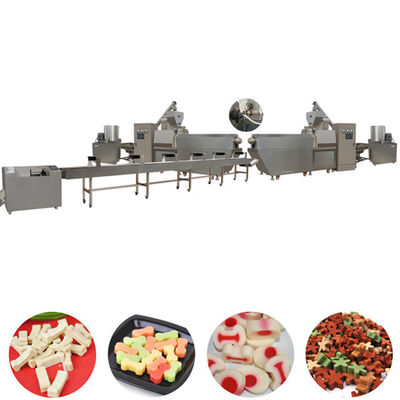

Pet treats/Dog chews food processing line Pet Dog food manufacturing equipment

Introduction:



This Pet Treats Food Processing line can be used to produce different sizes and shapes of pet treats, the size can be adjusted . It can also through two units of Single screw Extruders to co-extrude together to make Double color pet treats.

1) Capacity: 100kg/h

2) Raw material: Corn Starch, Meat Powder.

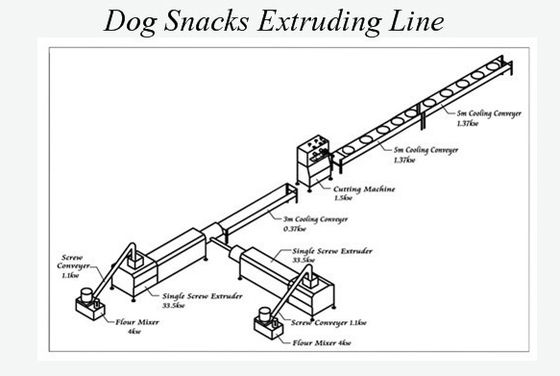

Flow chart: Raw Material Mix – Screw Conveying – Extruding – Cooling – Cutting – Drying -- Cooling





Technical Parameters



- All kinds of perfectly shaped non-crumbing chew snacks in a variety of color combinations.


- Max. 3-color chew snacks can be produced.


- Various shapes can be made, such as strip, stick, bone, screw shape, etc.


- Many kinds of recipes to make different tastes to meet different market demands.


- Turnkey project provided, from raw materials to packing procedures, fully continuous and automatic.


- Fully stainless steel 304.



Output

Installed Capacity

Actual Capacity

Voltage / Frequency

Dimension

100-150kg/hr

145kw

102kw

380V / 50Hz

30 x 5 x 3m



1. Motors are from WEG, Germay, which has 3-year world-wide guarantee;
2. Electric parts are from ABB or Schneider, easy to find replacments at local market;
3. PLC and touch screen are from Siemens, Germany to realize easier operation and less labor quantity;
4. PLC and touch scrren controls whole processing line, not one or two single equipment;
5. While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;
6. Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;
7. Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector;
8. All the cover body, mesh belt and parts touching with materials or final products are made by stainless steel 304.
