Dental Care Moulded Pet Chewing dog food making machine for Pet treats

China Dental Care Moulded Pet Chewing dog food making machine for Pet treats supplier
Dental Care Moulded Pet Chewing dog food making machine for Pet treats supplier Dental Care Moulded Pet Chewing dog food making machine for Pet treats supplier Dental Care Moulded Pet Chewing dog food making machine for Pet treats supplier Dental Care Moulded Pet Chewing dog food making machine for Pet treats supplier

Large Image :  Dental Care Moulded Pet Chewing dog food making machine for Pet treats

Product Details:

Place of Origin: Jinan, Shandong Province.
Brand Name: Darin
Certification: CE/ISO9001
Model Number: DM268

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: We supply standard export wooden cases, suitable for long-term trips and mul-times loading & unloading by forklift. If needed, please extra pay for the packages.
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 99 sets per year
Contact Now
Detailed Product Description
Name: High Quality Dental Care Moulded Pet Chewing Food Injection Machinery Voltage: 380V, 50HZ
Power(W): 89kw Commissioning Service: Provided
Dimension(L*W*H): 8.9 X 2.3 X 2.8m Forming Method:: Mould
Pet Treats Shape: Lovely Shapes Can Be Made Application: Pet Food

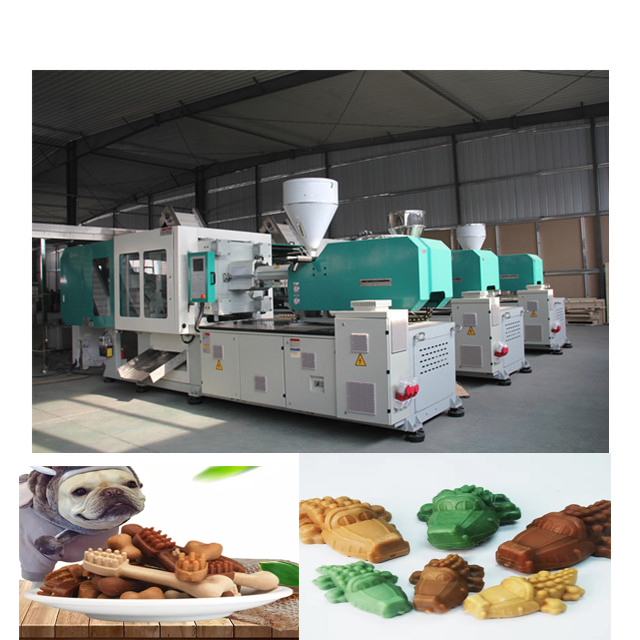

High Quality Dental Care Moulded Pet Chewing Food Injection Machinery

Product Specification

High Quality Dental Care Moulded Pet Chewing Food Injection Machinery can provide different recipes to meet various market demands. With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.

The shapes of pet treats are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. Also, we can provide different recipes to meet various market demands.



Technical Parameter


Model

DR-268

Screw diameter

60mm

Screw L/D Ratio

18.8

Short volume

707mm

Short Weight

636g/22.4oz

Injection pressure

142Mpa

Injection rate

239g/s

Plasticizing capacity

49g/s

Screw speed

180rpm



a) Equipped with servo motor to realize higher efficiency and lower consumption.

b) Dust, oil proof and colorful touch switch control panel.

c) El display of pressure, speed, time and distance for each motion.

d) Shut-down device with 100 presets mold data memory.

e) Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.

f) PID barrel temperature control: temperature abnormal & electrical wire breaking alarm.

g) SSR-solid state temperature controller.

h) Screw cold start protection.

i) Abnormal shot detection.

j) Output quantity and packaging quantity preset.

k) Clamping, injection and ejection, and carriage action (option) by linear potentiometer.

l) Screw rotating speed read-out.

m) Security code function to avoid missing data or careless changing.

n) Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently.

Factory & Office

Jinan Darin Machinery Co.,Ltd. an ISO9001 certified enterprise, specialized in development and sales of pet food machinery and relative packing machine. After years of development, Darin has established a mature sales and agency network. Darin machine runs in more than 50 countries including USA, Germany, Italy, Span, Holland, Australia, Brazil,Mexico, Egypt etc. All Darin machines are CE certified with premium quality and stable performance.

Commissioning Service



after sales service1 helping customer to layout desing according to factory size, also workshop design with electricity power, water supply, gas power, material storage, final storages.
after sales service2 supplying 10-14 days for the commissioning service
after sales service3 supplying 1 year guarantee from date of completion of commissioning service
after sales service4 assistance to install and adjust the processing line
after sales service5 providing basic formula for the production
after sales service6 clerks training
