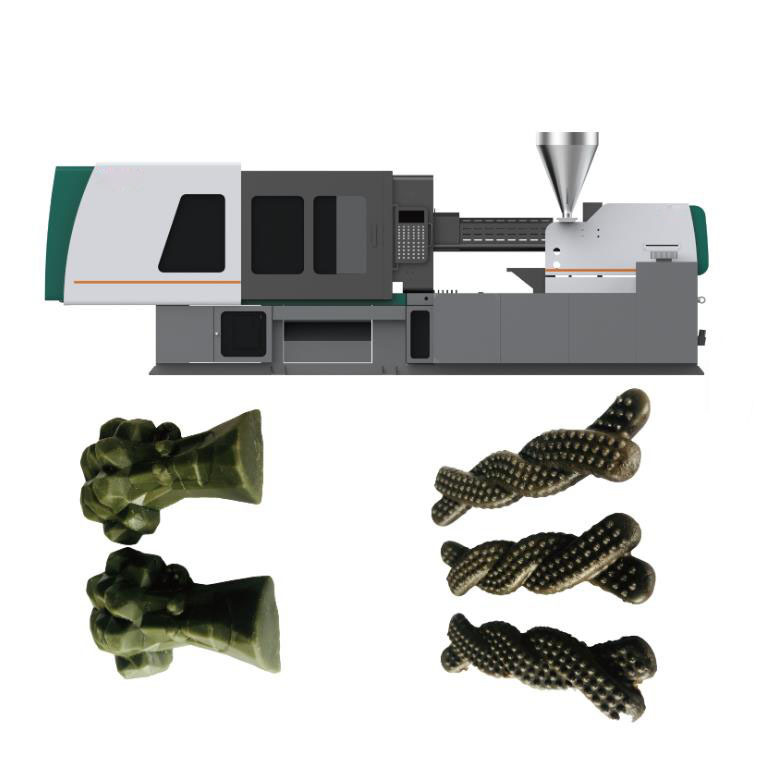

DM268 Darin Fully Automatic Dental Care Pet Injection Molding Machine
Product Details:
Place of Origin: | Jinan,Shandong Province |
Brand Name: | DARIN |
Certification: | CE Certificate |
Model Number: | DM268 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | We supply standard export wooden cases, suitable for long-term trips and mul-times loading & unloading by forklift. If needed, please extra pay for the packages. |
Delivery Time: | 45 working days |
Payment Terms: | L/C, T/T, D/P, Western Union |
Supply Ability: | 99 sets per year |
Detail Information |
|||
Name: | DM268 Darin Fully Automatic Dental Care Pet Injection Molding Machine | Application: | Pet Dog Treats |
---|---|---|---|
Weight: | 5000kg | Voltage: | 380V, 50HZ |
Power: | 89kw | Guarantee: | 1 Year |
Spare Parts: | 1 Set | Mold: | Various Shape |
High Light: | food processing machinery,animal food making machine |
Product Description
DM268 Darin Fully Automatic Dental Care Pet Injection Moulding Machine
Product Specification
DM268 Darin Fully Automatic Dental Care Pet Injection Moulding Machine is special machinery for producing pet snacks.
With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.
The shapes are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games.
Also, we can provide different recipes to meet various market demands.

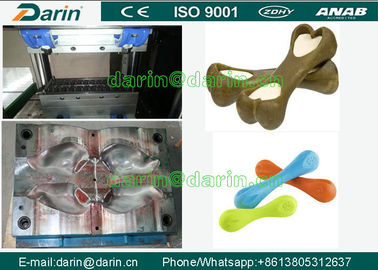

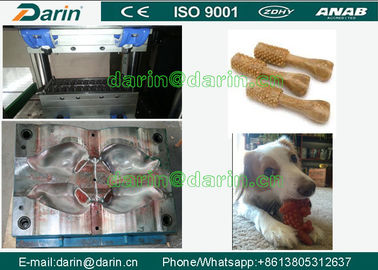

Sample Picture
Technical Parameter
1. It comes with user-friendly microprocessor controller with these following features;
2. Dust, oil proof and colorful touch switch control panel.
3. El display of pressure, speed, time and distance for each motion.
4. Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
5. PID barrel temperature control: temperature abnormal & electrical wire disconnection alarm.
6. SSR-solid state temperature controller.
7. Screw cold start protection.
8. Abnormal shot detection.
9. Output quantity and packaging quantity preset.
10. Clamping, injection and ejection (option), and carriage action (option) by linear potentiometer.
Item | Name of item | Unit | DM268 |
Injection Unit | Screw Diameter | mm | 55 |
Screw L/D Ratio | Ratio | 20 | |
Injection Volume (Theoretical) | cm | 601 | |
Injection Weight (PS) | g | 548 | |
Injection Pressure | Mpa | 185.1 | |
Injection Rate into Air | g/s | 223.7/276.1 | |
Injection Stroke | mm | 256 | |
Injection Speed | Mm/s | 95/116 | |
Screw Speed | rpm | 201/246 | |
Clamping Unit | Clamping Force | KN | 2600 |
Clamping Stroke | mm | 550 | |
Space Between Tie-bars | mm×mm | 580 x 580 | |
Max. Mould Height | mm | 600 | |
Min. Mould Height | mm | 250 | |
Ejector Stroke | mm | 160 | |
Hydraulic Ejection | KN | 68 | |
Ejector Rob Quantity | pcs | 9 | |
Others | Max. Pump Pressure | Mpa | 17.5 |
Pump Motor Power | kw | 22/30 | |
Heater Power | kw | 15.9 | |
Hopper Volume | L | 50 | |
Oil Pump Volume | L | 550 | |
Machine Weight | t | 8.5 | |
Mould Positioning Ring Diam | mm | 160 | |
Sphere Radius | mm | SR10 | |
Machine Dimension | m x m x m | 5.82 x 2 x 2 |
Factory & Office
Commissioning Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
