Home ProductsDog Bone Making Machine

Newly Designed PLC Hydraulic Pet Food Processing Equipment CE

Good quality Dog Food Extruder for sales
Good quality Dog Food Extruder for sales
We are very happy with the delivered machines from Darin. I recommend Darin as a business partner for the start-up of your production plant.

—— Mr. Roberto Biscotti of Italy

I can only say how very happy I am with this machine. It is cutting our labor cost in half and making our product the same size and shape every time.

—— Mr. James Urbanski of USA

The money you invest to Darin machines are much far less than that of other US or European machines and give you a big advantage against competition.

—— Mr. Gerard of Holland

I'm Online Chat Now

Newly Designed PLC Hydraulic Pet Food Processing Equipment CE

China Newly Designed PLC Hydraulic Pet Food Processing Equipment CE supplier
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE supplier Newly Designed PLC Hydraulic Pet Food Processing Equipment CE supplier

Large Image :  Newly Designed PLC Hydraulic Pet Food Processing Equipment CE

Product Details:

Place of Origin: Jinan, Shandong China
Brand Name: DARIN
Certification: CE/ISO9001
Model Number: DR-20T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid.
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 99setsper year
Contact Now
Detailed Product Description
Model Number: DR-20T Power(W): 89
Weight: 2000KG Dimension(L*W*H): 8.9 X 2.3 X 2.8m
Commissioning Service: Provided Extrusion: Stainless Steel 304
Type: Pressed Bone Machine Electric Device: Famous Brand

Product Description

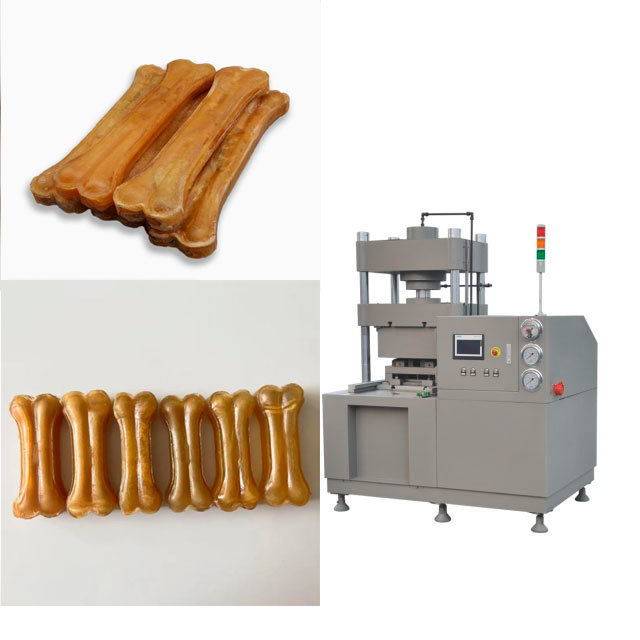

Rawhide Pet Bone Pressing Machine with ISO9001 is type of Flour Column and Three Board, the upmost output tonnage is 20t.

It can be adjusted amon the range of 5t-20t according to the different products’procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).

And the  dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-20T Pressing Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.

In addition, our DR-20T Pressing Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.


Machine Picture

Newly Designed PLC Hydraulic Pet Food Processing Equipment CE



Newly Designed PLC Hydraulic Pet Food Processing Equipment CE

Technical Parameters


Project

DR-20T

Liquid Pressure of Work (MPa)

14-21


Theory Output (Ton)

5-20


Working surface size (mm)

Left and Right 500



Working surface size (mm)



Front and Back 400

Height of Working Table Off the Ground(MM)

780

Biggest Operational Height(mm)

400

Close(mm)

200


Cylinder Stroke(mm)

200

Motor Power

5.5KW

Structural Style

Flour Column Three Board



Above Oil Cylinder


Power source

380VAC,50/60Hz

Weight

1108kg

Dimension

600*500*1780mm

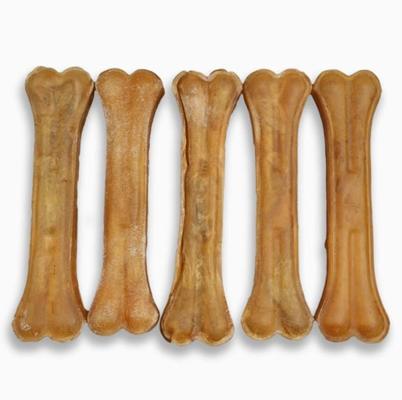

Sample Picture
 Newly Designed PLC Hydraulic Pet Food Processing Equipment CE

Certificate

Newly Designed PLC Hydraulic Pet Food Processing Equipment CE

Customer Visit

Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Exhibition
 Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
 Packing and shipping


Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Factory & Office

Newly Designed PLC Hydraulic Pet Food Processing Equipment CE

Commissioning Service


a. Consultation service before, during, and after sales;

b. Project planning and design service;

c.Debugging of equipment until everything is functional;

d. Management of equipments' long distance shipping from seller's factory to the named place by buyer;

e.Training of equipment maintenance and operating personally;

f. New production techniques and formulas;

g. Provide 1 year complete warranty and life-time maintenance service.


Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
