600*500*1780mm Dog Food Maker Machine Easy Operation And Clean
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DR-20T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid. |
| Delivery Time: | 45darys |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 99setsper year |
|
Detail Information |
|||
| Application: | Dog | Voltage: | Customized By Customer Local Voltage. |
|---|---|---|---|
| Power(W): | 5.5kw | Weight: | 1200kg |
| Dimension(L*W*H): | 600*500*1780mm | Warranty: | 12 Months |
| Advantage: | Easy Operation And Clean | Moulds: | Customized |
| High Light: | pet food machine,dog food maker machine |
||
Product Description
Rawhide Bone Hydraulic Machine For Dog Treats with factory pricect Description
Product Description
Dog Chews Rawhide Machine, Dog Chews Machine, Dog Chew Bone Machine can produce pet chewing bone with cowhide, pigskin, beef tendons or sheepskin as material. It could press the material to be various shapes and sizes.
Good Price and High Quality Hydraulic Press Equipment for Animal Chews could produce pet chewing bone with cowhide, pigskin or sh-eepskin as material. It could press the material to be various shapes and sizes.
Features
1, This Punching Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.
2, It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
3, The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.

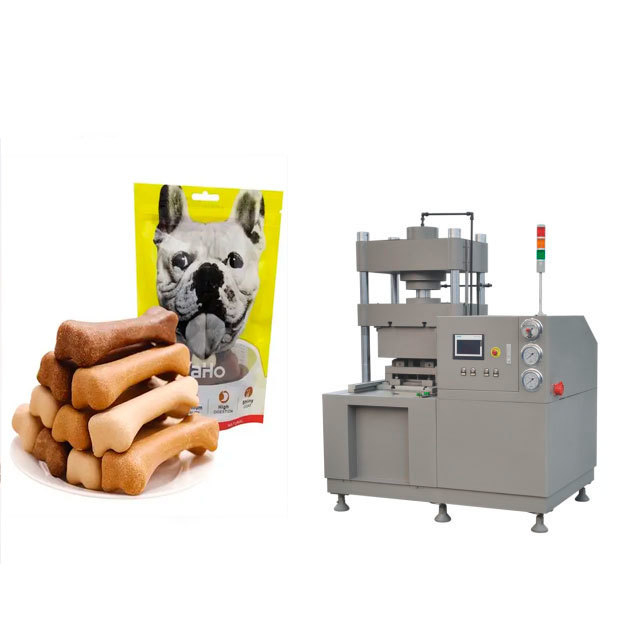

Machine Picture
Technical Parameters
|
Project |
DR-20T |
|
Liquid Pressure of Work (MPa) |
14-21 |
|
|
5-20 |
|
|
Left and Right 500 |
|
|
|
|
Working surface size (mm) |
|
|
Front and Back 400 |
|
|
Height of Working Table Off the Ground(MM) |
780 |
|
Biggest Operational Height(mm) |
400 |
|
Close(mm) |
200 |
|
|
200 |
|
Motor Power |
5.5KW |
|
Structural Style |
Flour Column Three Board |
|
|
Above Oil Cylinder |
|
|
380VAC,50/60Hz |
|
Weight |
1108kg |
|
Dimension |
600*500*1780mm |
Sample Picture
Certificate
Packaging
Customer Visit
Exhibition
Factory & Office
Commissioning Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 5-7 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
