380V , 50 / 60Hz Pressed Rawhide Bones dog snacks making machine
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DR-20T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid. |
| Delivery Time: | 45darys |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 99setsper year |
|
Detail Information |
|||
| Application: | Dog | Voltage: | Customized By Customer Local Voltage. |
|---|---|---|---|
| Power(W): | 5.5kw | Weight: | 1200kg |
| Dimension(L*W*H): | 600*500*1780mm | Warranty: | 12 Months |
| Pressing Type: | Extrusion | Recipe & Formula: | Provide Free Of Charge |
| Name: | Rawhide Dog Snacks Making Machine Manufacturer | ||
| High Light: | pet food machine,dog food maker machine |
||
Product Description
Jinan Darin Manufacturer of Dog Rawhide Chewing Bones Pressing MachineProduct Description
Product Description
Rawhide Dog Snacks Making Machine Manufacturer could produce pet chewing bone with cowhide, pigskin or sh-eepskin as material. It could press the material to be various shapes and sizes.
Features
1, It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
2, The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
3, Punching Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.

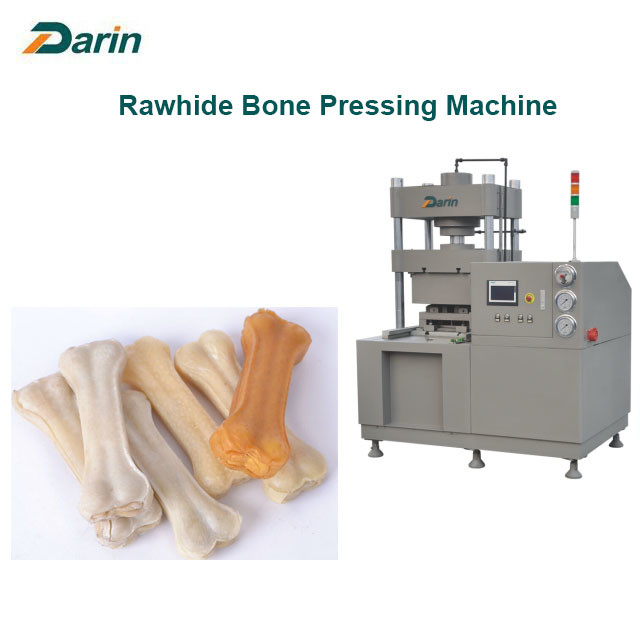

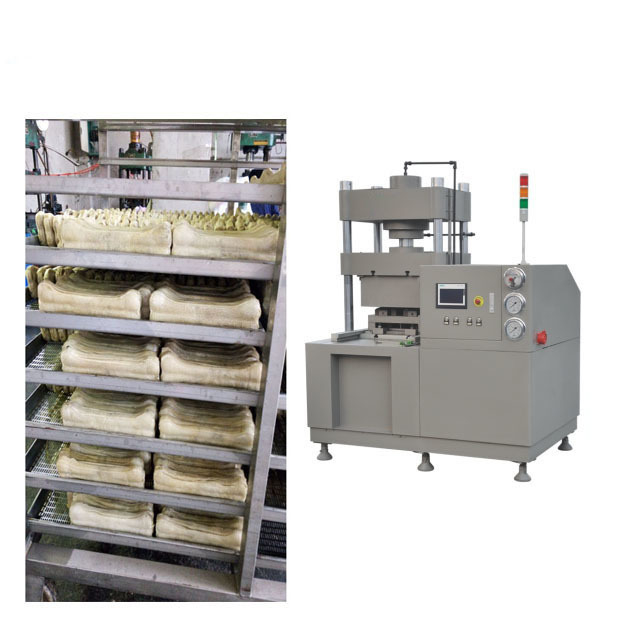

Machine Picture
Technical Parameters
|
Project |
DR-20T |
|
Liquid Pressure of Work (MPa) |
14-21 |
|
|
5-20 |
|
|
Left and Right 500 |
|
|
|
|
Working surface size (mm) |
|
|
Front and Back 400 |
|
|
Height of Working Table Off the Ground(MM) |
780 |
|
Biggest Operational Height(mm) |
400 |
|
Close(mm) |
200 |
|
|
200 |
|
Motor Power |
5.5KW |
|
Structural Style |
Flour Column Three Board |
|
|
Above Oil Cylinder |
|
|
380VAC,50/60Hz |
|
Weight |
1108kg |
|
Dimension |
600*500*1780mm |

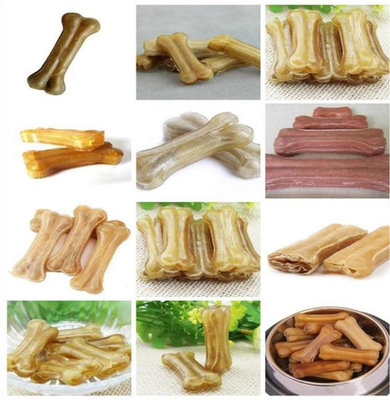

Sample Picture
Certificate
Machine Details
Packing and Shipping
Customer Visit
Exhibition
Factory & Office
Commissioning Service
