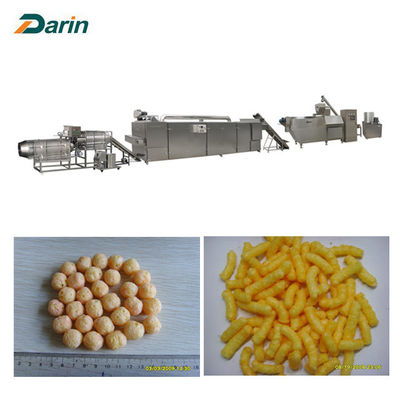

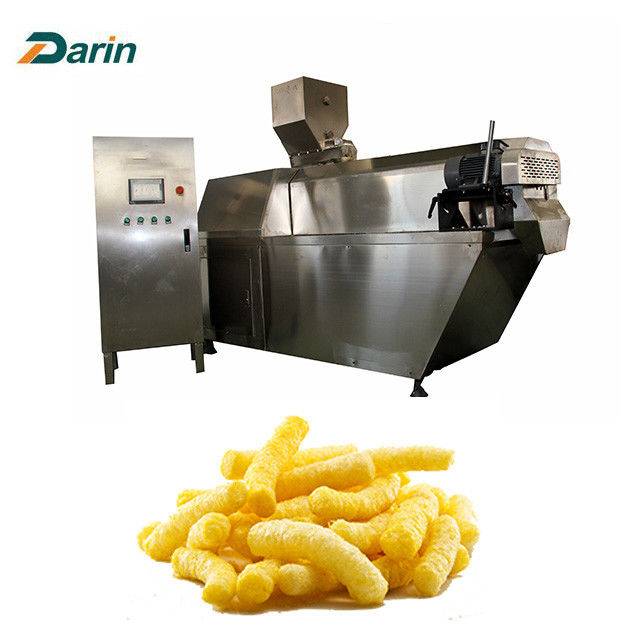

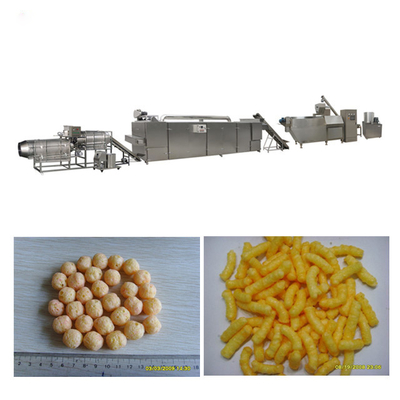

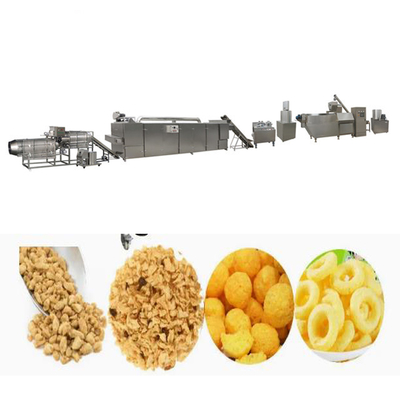

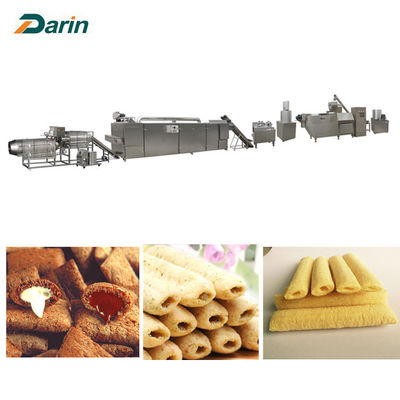

SS304 Cheese / Corn Puff Snack Extruder Food Production Line / Machinery

China SS304 Cheese / Corn Puff Snack Extruder Food Production Line / Machinery supplier
SS304 Cheese / Corn Puff Snack Extruder Food Production Line / Machinery supplier SS304 Cheese / Corn Puff Snack Extruder Food Production Line / Machinery supplier

Large Image :  SS304 Cheese / Corn Puff Snack Extruder Food Production Line / Machinery

Product Details:

Place of Origin: CHINA
Brand Name: DARIN
Certification: CE
Model Number: DR-65/70/85/90

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks.
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Condition: New Dimension(L*W*H): 2150*1500*2300
Voltage: 380v, 50hz, 3phases (adjustable) Warranty: 12 Months
Applied: Corn Puff Snack Extruder Material: SS304
Manual: English Version Capacity: 120-150kg/h,200-250kg/h,400-500kg



SS304 Cheese / Corn Puff Snack Extruder Food Production Line / Machinery



1. Brief Description fo

r corn snacks extruder machine

Direct puff snack process line uses wheat flour, maize meal and others as the main raw materials, by taking the advantage of pressure difference between inside and outside in a high temperature and high pressure condition to produce a variety of puff snack which is popular in the market, such as globular, rolls, crispy stick, rings etc. By changing moulds and assistant equipments, it can also produce nutritional powder, grain gruel and many other leisure snacks in different shapes. This automatic process line is of leading level for its superior characters, such as, "applied to many materials, convenient operation and maintenance, low power consumption, high output".



2. Technological Process

Raw Materials Configuration→ Mixing→  Conveyance→  Extrusion→  Conveyance→  Drying→  Flavoring



Equipment Configurations

  1. Flour Mixer: Stir mixed raw materials evenly with a certain amount of water. Choose different GY flour mixer model according to different output requirements.
  2.  Spiral Conveyor: Convey stirred raw materials into feeding hopper of extruder.
  3. Extruder: Select different GY extruder model based on clients’ raw materials and output capacity requirement. With the help of special control cabinet, extruder is able to extrude the raw material under different temperature & pressure, and produce puffed products. The shapes of products can be changed by changing the modules in extruder.
  4. Multi-layer Drying Oven: Dry semi-finished products. It is the most common dehydration plant for puffed food. It includes a belt dryer and some in-built heating devices to carry out drying by means of electricity, vapor, diesel or gas. The drying temperature and drying time can be controlled.
  5. Flavoring Line: Select square flavoring machine, single-roller flavoring line or dual-roller flavoring line, based on output and product properties. Single-roller and dual-roller flavoring line combine the functions of flavoring with seasoning and oil injection together.

Characteristics

  • Various models to meet different output capacity requirements.
  • Flexible configurations to meet different produce, budget and workshop layout requirement.
  • Vast raw material range to produce different final products by only one production line.
  •  Different shapes and appearances of final products can be made by changing different modules in extruder.
  • High automation and accurate control system to save labor cost and improve the quality of final products.
  • Independent temperature control system is able to realize zone temperature control, electronic induction, accurate & visual digital display.
  •  Feeding system without material returning. It is unnecessary to clean barrel and screw in case of restarting or material replacement.
  • Screw adopts high-performance nitride alloy steel with strong wear-resistance and longer service life.
  • Food-grade stainless steel. Neatness and easy clean.





 3.Technical Parameters



model installed power power consumption output  size
DR65 81.5kw  53kw 120-150kg/h 21000x1200x2200mm
DR70 116kw  76kw 200-250kg/h 23000x1500x2200mm
DR85 181kw 117kw 400-500kg/h 28000x3500x4300mm


1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and

wear-resting. And it has good self-cleaning ability and does not need to discharge or
clean the barrel and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel

coating.
3. Radiator is increased on driving part for forced cooling effect, and it ensures extruder

operate safely.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5.The gearbox has automatic lubrication function, with extends gear life.
6. Main Motor from SIEMENS(CHINA), ensure its Powerful Extrusion and Excellent

Performance.

Why You Must Choose Us


1. Big Capacity Feeding Hopper, Variable Frequency Speed, Two Stages Mixing Wings ensure the Fast and Efficient Mixing and Feeding.
2. Double Axis Differential Conditioner, Available for Steam, Pre-cooking and High Efficient.
3. Linear Slide Face Cutting System, Strong Power, Variable Frequency Speed and Large Output,
4. Unique Designed Square Barrels, Made by Hard Carbide Sleeve, Hard-wearing and Durable.
5. Modular Circular Groove Screws, available for Different Extrusion Rate Applications.
6. Steam Heating System, ensure the Most Efficient, Continuous and Stable Heating Effects.
7. World-famous Brands Electronic Apparatus used in the Controller Box, make sure the Extrusion Process Perfect.
8. Main Motor from SIEMENS(CHINA), 90KW, ensure its Powerful Extrusion and Excellent Performance.


Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: DR
Model Number: DR65/DR70/DR85
Application: snack food / nutrition food/food
Power(W):30-150  kw
Dimension(L*W*H): 21000x1200x2200mm
Certification: CE/ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details: Suitable for export wooden box
Delivery Detail: About 35 days after receiving the down payment
