Home ProductsFood Extruder Machine

Fully Automatic Baby food nutritional powder production line/extruder making machinery with CE

Good quality Dog Food Extruder for sales
Good quality Dog Food Extruder for sales
We are very happy with the delivered machines from Darin. I recommend Darin as a business partner for the start-up of your production plant.

—— Mr. Roberto Biscotti of Italy

I can only say how very happy I am with this machine. It is cutting our labor cost in half and making our product the same size and shape every time.

—— Mr. James Urbanski of USA

The money you invest to Darin machines are much far less than that of other US or European machines and give you a big advantage against competition.

—— Mr. Gerard of Holland

I'm Online Chat Now

Fully Automatic Baby food nutritional powder production line/extruder making machinery with CE

China Fully Automatic Baby food nutritional powder production line/extruder making machinery with CE supplier
Fully Automatic Baby food nutritional powder production line/extruder making machinery with CE supplier Fully Automatic Baby food nutritional powder production line/extruder making machinery with CE supplier

Large Image :  Fully Automatic Baby food nutritional powder production line/extruder making machinery with CE

Product Details:

Place of Origin: CHINA
Brand Name: DARIN
Certification: CE ISO9001
Model Number: DR-65/70

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases,
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Product Name: Nutrition Powder Extruding Line Application: The Processing Line Can Produce Nutrition Powder In Good Quality.
Condition: New Layout: AutoCAD Format According To Client’s Workshop
Manual: English Version Standard: CE
Commissioning Service / Training: Provide, But Paid By Buyer After-sales Service: Full Life

Fully Automatic Baby food nutritional powder production line/extruder making machinery with CE



I. Brief Instruction

The nutritional powder production line is according to the European and American technology, our company developed to our own technology, the production line is fully automatic, stablely performance, simply operation, highly yield, less time produce, and overcome all the disadvantages of the original tradition.Now our nutritional powder production line widely used in all kinds of baby rice, sesame paste, walnut paste-type products.

2. The model is DR65-III, the output is 120-150kg/h.



3. Extruder screws quantity is two.



4. The main body material is stainless steel, which is easy to be cleaned.



5. The screws material is 38CrMoAl, which is wear-resisting.



6. The processing line needs two workers to operate.



7. We advice the plant area is no less than 100 square meters, the length is no less than 20

meters.

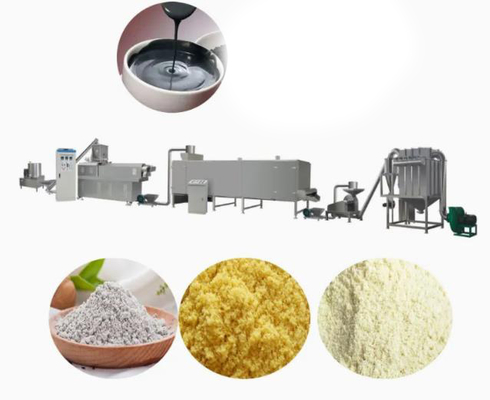

8. Process flow: (Raw material)---mixing---conveying---extruding & puffing---conveying---drying--- milling---(packing)



9. Equipments: Mixer---Screw Conveyor---Extruder---Air conveyor---Dryer--- Grinder---(Packing machine)



10. The temperature and rotating speed can be controlled and adjusted.



11. The processing line has self-cleaning function.



II. Technical Parameters

model installed power power consumption output size
LT65 66kw 50kw 150kg/h 19000x1200x2200mm
LT70 100kw 67kw 250kg/h 20000x1500x2200mm
LT85 130kw 100kw 600-800kg/h 30000x3500x4300mm

III. Why You Must Choose Us



1. De-stone machine : to remove the stone of rice

2. Vacuum conveyor : to convey rice to the grinding machine

3. Grinding machine: to grind rice to flour

4. Flour mixer: to mix various flour evenly.

5. Vacuum conveyor: to convey the rice powder to extruder

6. Twin screw extruder : to puff and cook rice powder to ready-to-eat puffed food

7. Air conveyor: to convey extruding food to the next machine

8. Drying and cooling machine: to remove the moisture and cool the extruding food

9. Z-type conveyor: to convey the food the the next machine

10. High fine grinding machine: to grind the rfood to the finest powder

11. Vacuum conveyor: to convey the rice powder to the mixer

12. Ribbong mixer: to mix various nutritional powder evenly

13: Mechnical vibrating machine: to vibrating and sift the unqualified powder



Main Products List of our factory



No.

Production Line

1

Extruded Kurkure / Nik Nak Snacks Food Production Line

2

Core Filling / Inflating Snacks Production Line

3

Breakfast Cereals / Corn Flakes Production Line

4

Extruded Doritos / Tortilla Corn Chips Snacks Food Production Line

5

Crispy Chips / Sala / Bugles Production Line

6

Nutrition Powder / Baby Rice Powder Production Line

7

Nutrition Rice / Artificial Rice Production Line

8

Bread Crumbs Production Line

9

Extruded Soya Meat Food Production Line

10

Extruded Pet / Dog / Cat Food Production Line

11

Chewing / Jam Center Pet Food Production Line

12

Extruded Snacks Pellet Food Production Line

13

Instant Noodles Production Line

14

Fried Wheat Flour Snacks Production Line

Exhibitions Show



FAQ
1.Where is your company situated?

Our factory located in Jinan, Shandong Province, China.
You can take plane to Jinan International Airport, or take high-speed rail to Jinan
West Station , Jinan Station ,we will pick you up to our factory.

2.What is your payment term?

You can transfer the payment via T/T.  Generally, 30% advance to start to produce,
70% balance should be paid before shipping.

3.  What capacity do you want ?

We have different capacity like 100kgs/hr. Please tell your requirement about the capacity so will make exact quotation for you.


If you are interested in our machine , please contact me .
