High capacity Inflating snacks food processing equipment / machinery
Corn puffs making equipment from feeding materials,extruding,drying,oil spraying,cooling to packaging are finished once time automatic.We fill the gap of the first-class food produced with extruded & infated technology.This processing line can produce all kind of inflating foodstuffs,rice bread,core snacks,crackers,gruels,breakfast cereals,and baby food and so on.The raw materials can be maize,rice or wheat flour,etc.

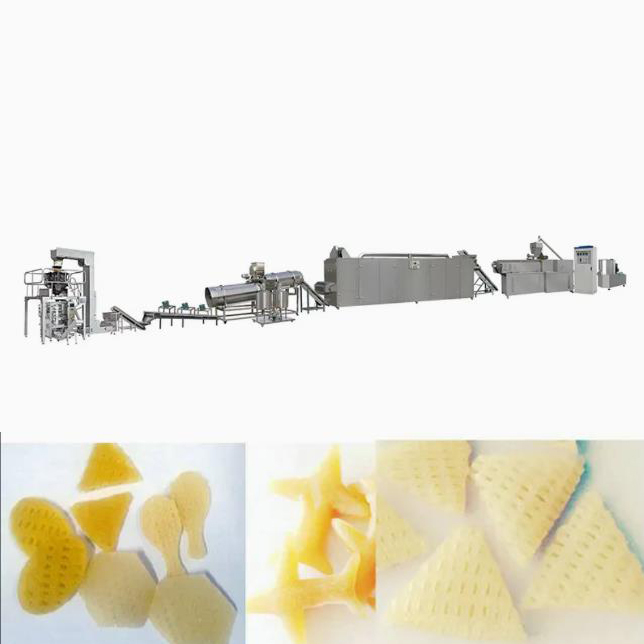

Flow chart: Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system
1.The main extruder adopts frequency speed controlling with high automation and stable per-formation.
2. puffed corn snacks machine made of the alloy steel and special craft,durable usage,high pressure,the screw life is longer.Adopting the building block structure and combining willingly according to the different demand.
3.The forced lubrication system,so that it can guarantee the equipment transmission life is longer.
4.Auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.
5.Self-cleaning ,when stopping ,it can be cleaned without desassembling.
6.According to different screw design rate to full different technology request.
7.This equipment has the wide material,multi-shape products and flexible collocations.We can produce the different products according to the different models (pellet, star , ring , moon , ball , stick or grain)and collocations.
3 Double screw extruder features:
(1). Automatic core filling snack food processing machinery has the advantage of rational design, high automatic degree and accuracy control.
(2).The main body material is stainless steel, which is easy to be cleaned.
(3).The screws material is 38CrMnAl, which is wear-resisting.
(4).Our project is turn-key. We will send our engineer to your factory, install and debug the equipments, and train your operators.
(5).The temperature and rotating speed can be controlled and adjusted.
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or
clean the barrel and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
3. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5.The gearbox has automatic lubrication function, with extends gear life.
6. Main Motor from SIEMENS(CHINA), ensure its Powerful Extrusion and Excellent Performance.
Why You Must Choose Us
1. Big Capacity Feeding Hopper, Variable Frequency Speed, Two Stages Mixing Wings ensure the Fast and Efficient Mixing and Feeding.
2. Double Axis Differential Conditioner, Available for Steam, Pre-cooking and High Efficient.
3. Linear Slide Face Cutting System, Strong Power, Variable Frequency Speed and Large Output,
4. Unique Designed Square Barrels, Made by Hard Carbide Sleeve, Hard-wearing and Durable.
5. Modular Circular Groove Screws, available for Different Extrusion Rate Applications.
6. Steam Heating System, ensure the Most Efficient, Continuous and Stable Heating Effects.
7. World-famous Brands Electronic Apparatus used in the Controller Box, make sure the Extrusion Process Perfect.
8. Main Motor from SIEMENS(CHINA), 90KW, ensure its Powerful Extrusion and Excellent Performance.
Place of Origin: Shandong, China (Mainland)
Brand Name: DR
Model Number: DR65/DR70/DR85
Application: snack food / nutrition food/food
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details: Suitable for export wooden box
Delivery Detail: About 35 days after receiving the down payment
Our Terms and After-sale Service
1. Delivery time:40 days after we receive the deposits
2. Payment: 30% deposits, balance against copy of bill of lading or LC at sight
3. Installation and commision: seller will send 1 technician to buyer's factory, All expenses including visa, round trip tickets, daily accommodation will be on the buyer’s account
4. Warranty is for one year
5. Accessory and spare pats will be offered with the whole line
