Fully Automatic Corn Puff Corn Extruder Machine / potato chips maker machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DARIN |
| Certification: | CE |
| Model Number: | DR-65/70/85/90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks. |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 sets per year |
|
Detail Information |
|||
| Condition: | New | Dimension(L*W*H): | 2150*1500*2300 |
|---|---|---|---|
| Voltage: | 380v, 50hz, 3phases (adjustable) | Warranty: | 12 Months |
| Applied: | Corn Puff Snack Extruder | Material: | SS304 |
| Manual: | English Version | Capacity: | 120-150kg/h,200-250kg/h,400-500kg |
| High Light: | grain puffing machine,corn puff extruder machine |
||
Product Description

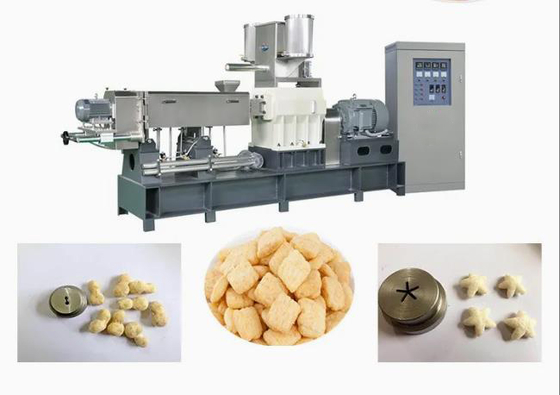

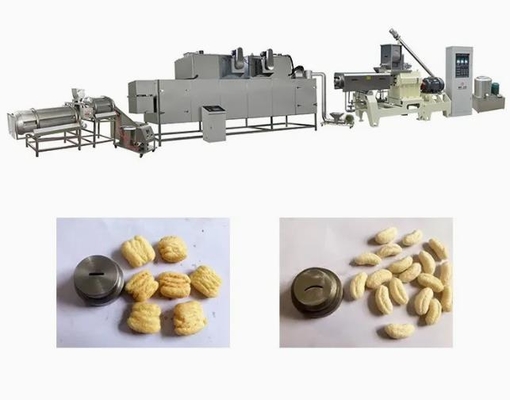

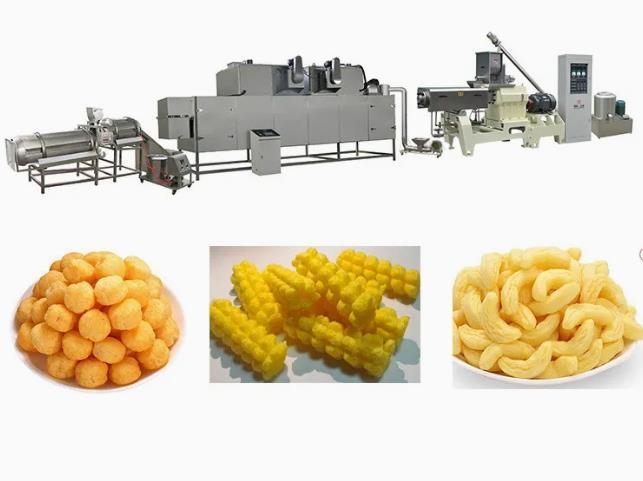

Fully Automatic Corn Puff Corn Chips Snack Food Machine/Production Line
Brief Introduction:
Puff Snacks are kinds of snacks made from corn powder, which are cut and then fried. The main raw materials are corn powder, vegetable oil, salt and water. Although usually made of yellow corn(as pictured), they also can be made of white or red corn. After frying and flavoring, we get very crunchy triangle or other shapes chips, which are popular with both children and adult.
1. Raw Materials: Corn Powder as Usual
2. Products: All shapes of Doritos, shapes like round, triangle, hexagon etc. The size of products can be changed according to clients’ requirements.
3. Capacity: 120-150 KG/H, 200-250 KG/H
4. Flow Chart: Mixing—Extrusion —Shaping —Separating—Frying —Flavoring
5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.
II. Technical Parameters of Doritos/Tortilla/Corn Chips Process Line
Technical Parameters
| model | installed power | power consumption | output | size |
| DR65 | 81.5kw | 53kw | 120-150kg/h | 21000x1200x2200mm |
| DR70 | 116kw | 76kw | 200-250kg/h | 23000x1500x2200mm |
| DR85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and
wear-resting. And it has good self-cleaning ability and does not need to discharge or
clean the barrel and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel
coating.
3. Radiator is increased on driving part for forced cooling effect, and it ensures extruder
operate safely.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5.The gearbox has automatic lubrication function, with extends gear life.
6. Main Motor from SIEMENS(CHINA), ensure its Powerful Extrusion and Excellent
Performance.
Why You Must Choose Us
1. Big Capacity Feeding Hopper, Variable Frequency Speed, Two Stages Mixing Wings ensure the Fast and Efficient Mixing and Feeding.
2. Double Axis Differential Conditioner, Available for Steam, Pre-cooking and High Efficient.
3. Linear Slide Face Cutting System, Strong Power, Variable Frequency Speed and Large Output,
4. Unique Designed Square Barrels, Made by Hard Carbide Sleeve, Hard-wearing and Durable.
5. Modular Circular Groove Screws, available for Different Extrusion Rate Applications.
6. Steam Heating System, ensure the Most Efficient, Continuous and Stable Heating Effects.
7. World-famous Brands Electronic Apparatus used in the Controller Box, make sure the Extrusion Process Perfect.
8. Main Motor from SIEMENS(CHINA), 90KW, ensure its Powerful Extrusion and Excellent Performance.
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: DR
Model Number: DR65/DR70/DR85
Application: snack food / nutrition food/food
Power(W):30-150 kw
Dimension(L*W*H): 21000x1200x2200mm
Certification: CE/ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details: Suitable for export wooden box
Delivery Detail: About 35 days after receiving the down payment
Our Terms and After-sale Service
1. Delivery time:40 days after we receive the deposits
2. Payment: 30% deposits, balance against copy of bill of lading or LC at sight
3. Installation and commision: seller will send 1 technician to buyer's factory, All expenses including visa, round trip tickets, daily accommodation will be on the buyer’s account
4. Warranty is for one year
5. Accessory and spare pats will be offered with the whole line
