Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine

Good quality Dog Food Extruder for sales
Good quality Dog Food Extruder for sales
We are very happy with the delivered machines from Darin. I recommend Darin as a business partner for the start-up of your production plant.

—— Mr. Roberto Biscotti of Italy

I can only say how very happy I am with this machine. It is cutting our labor cost in half and making our product the same size and shape every time.

—— Mr. James Urbanski of USA

The money you invest to Darin machines are much far less than that of other US or European machines and give you a big advantage against competition.

—— Mr. Gerard of Holland

I'm Online Chat Now

Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine

China Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine supplier
Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine supplier Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine supplier

Large Image :  Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: DARIN
Certification: CE
Model Number: DR-65/70/85/90

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks.
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Condition: New Dimension(L*W*H): 2150*1500*2300
Voltage: 380v, 50hz, 3phases (adjustable) Warranty: 12 Months
Applied: Corn Puff Snack Extruder Material: SS304
Manual: English Version Capacity: 120-150kg/h,200-250kg/h,400-500kg

Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine

Description

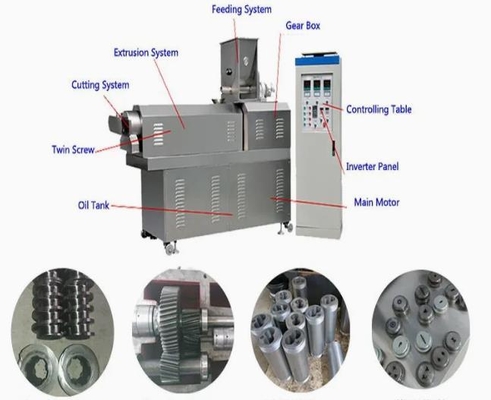

Snack Food Production Line can use corn flour, wheat flour, rice flour, soya bean meal, peanut meal etc to produce inflated snacks and non-inflated pellets products by changing screws.Puff Production Line consists of feeding system, extruding system, cutting system, heating system, driving system, lubricating system, water-cooling system and controlling system.



a. Raw Materials: adopts corn, rice, wheat, oat, barley etc as ingredients

b. Products: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder

c. Capacity: 150kg/h, 240kg/h, 500kg/h

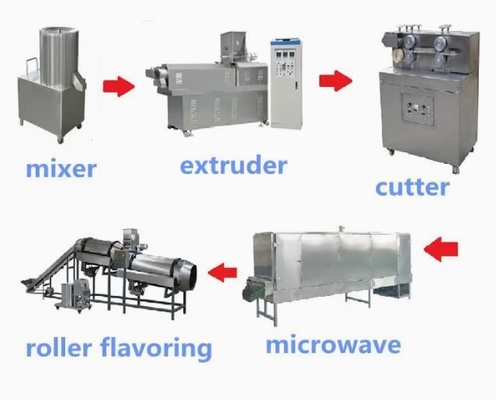

d. Flow chart: Mixing system---Extrusion system----Drying system---Flavoring system---Packing system

e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

g. Technical Parameters



model installed power power consumption output size
DR65 81.5kw 53kw 120-150kg/h 21000x1200x2200mm
DR70 116kw 76kw 200-250kg/h 23000x1500x2200mm
DR85 181kw 117kw 400-500kg/h 28000x3500x4300mm



Service & Installation





a.) Consultation service before, during, and after sales;



b.) Project planning and design services;



c.) Debugging of equipment until everything is functional;



d.) Management of equipments' long distance shipping from seller's factory to named place by buyer;



e.) Training of equipment maintenance and operating personally;



d.) New production techniques and formulas;



e.) Provide 1 year complete warranty and life-time maintenance service;



Our Terms and After-sale Service



1. Delivery time:40 days after we receive the deposits

2. Payment: 30% deposits, balance against copy of bill of lading or LC at sight

3. Installation and commision: seller will send 1 technician to buyer's factory, All expenses including visa, round trip tickets, daily accommodation will be on the buyer’s account

4. Warranty is for one year

5. Accessory and spare pats will be offered with the whole line

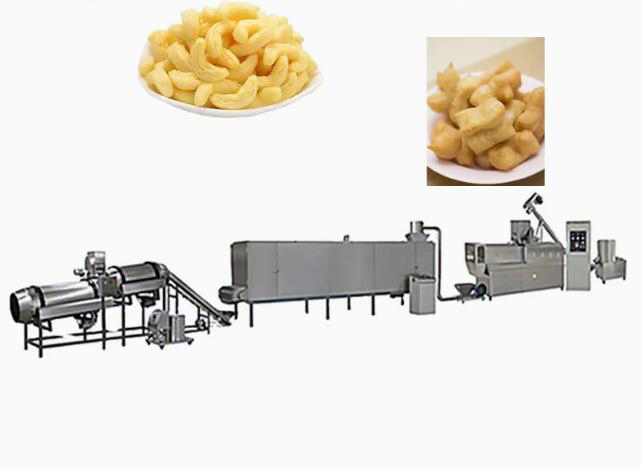

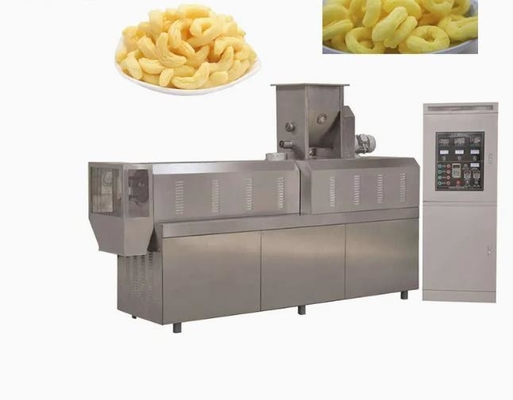

Machine &sample pictures:

Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine

Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine







Factory picture:

Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine

Puffed Food Extruder/inflating Food Extruder/corn Snack Food Making Machine
