Puff Corn snack food processing line with finish mixing , extruding , shaping

China Puff Corn snack food processing line with finish mixing , extruding , shaping supplier

Large Image :  Puff Corn snack food processing line with finish mixing , extruding , shaping

Product Details:

Place of Origin: CHINA
Brand Name: DARIN
Certification: CE
Model Number: DR-65/70/85/90

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks.
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 50 sets per year
Detailed Product Description
Condition: New Dimension(L*W*H): 2150*1500*2300
Voltage: 380v, 50hz, 3phases (adjustable) Warranty: 12 Months
Applied: Corn Puff Snack Extruder Material: SS304
Manual: English Version Capacity: 120-150kg/h,200-250kg/h,400-500kg

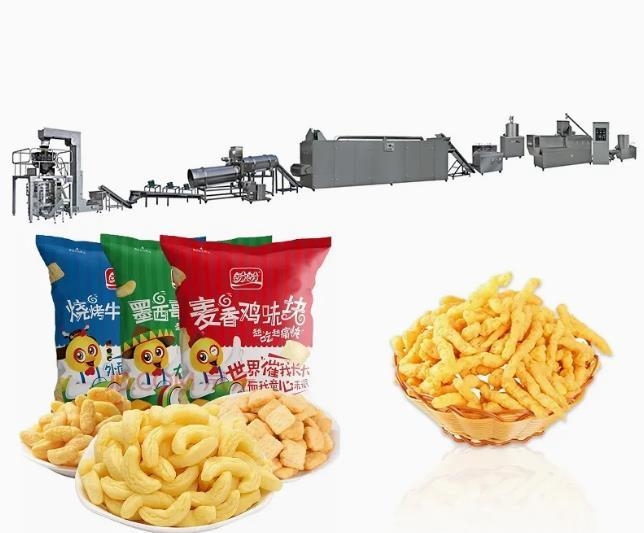

Puff Corn snack food processing line with finish mixing , extruding , shaping





Brief Introduction of Corn Snacks Food Machine



-Corn Snacks Food Machine is a new type of extruding food machine studied and developed on the basis of learning from advanced technology in the world .



-The line will finish mixing, extruding, shaping,roasting, spraying and proucing in one-pass opereation automatically.the line features lots of types, flexible collocation, extensive materials, various prodcuts and easy operation.



Technical Parameters of Corn Snacks Food Machine



model installed power power consumption output  size
DR65 81.5kw  53kw 120-150kg/h 21000x1200x2200mm
DR70 116kw  76kw 200-250kg/h 23000x1500x2200mm
DR85 181kw 117kw 400-500kg/h 28000x3500x4300mm



Why We Are The Best Choice



1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.

2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.

3. Gearbox with automatic lubrication function, extending gear life.

4. World famous brand Siemens main motor, guaranteeing good quality

5. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.

6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.


We Provide Satisfied Service & Turnkey Solution

a.) Consultation service before, during, and after sales;

b.) Project planning and design service;

c.) Debugging of equipment until everything is functional;

d.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;

e.) Training of equipment maintenance and operating personally;

f.) New production techniques and formulas;

g.) Provide 1 year complete warranty and life-time maintenance service.



Our Terms and After-sale Service



1. Delivery  time:40 days after we receive the deposits

2. Payment: 30% deposits, balance against copy of bill of lading or LC at sight

3. Installation and commision: seller will send 1 technician to buyer's factory, All expenses including visa, round trip tickets, daily accommodation will be on the buyer’s account

4. Warranty is for one year

5. Accessory and spare pats will be offered with the whole line
