Hot Runner System Pet Injection Molding Machine for Dog Treats
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DM268 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | We supply standard export wooden cases, suitable for long-term trips and mul-times loading & unloading by forklift. If needed, please extra pay for the packages. |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 99 sets per year |
|
Detail Information |
|||
| Application: | Pet Treats Moulding Machine | Voltage: | 380V, 50HZ |
|---|---|---|---|
| Power(W): | 89kw | Certification: | CE & ISO9001 |
| Delivery Detail:: | 45days | Forming Method:: | Mould |
| Pet Treats Shape: | Lovely Shapes Can Be Made | Manual: | English Version |
| High Light: | food processing machinery,dog treat making machine |
||
Product Description

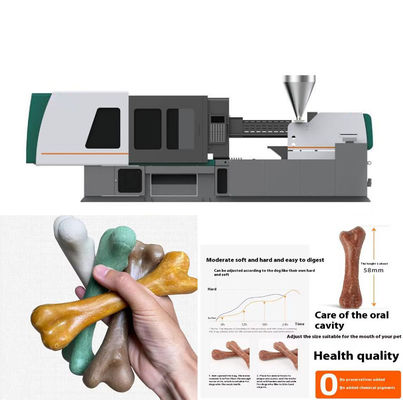

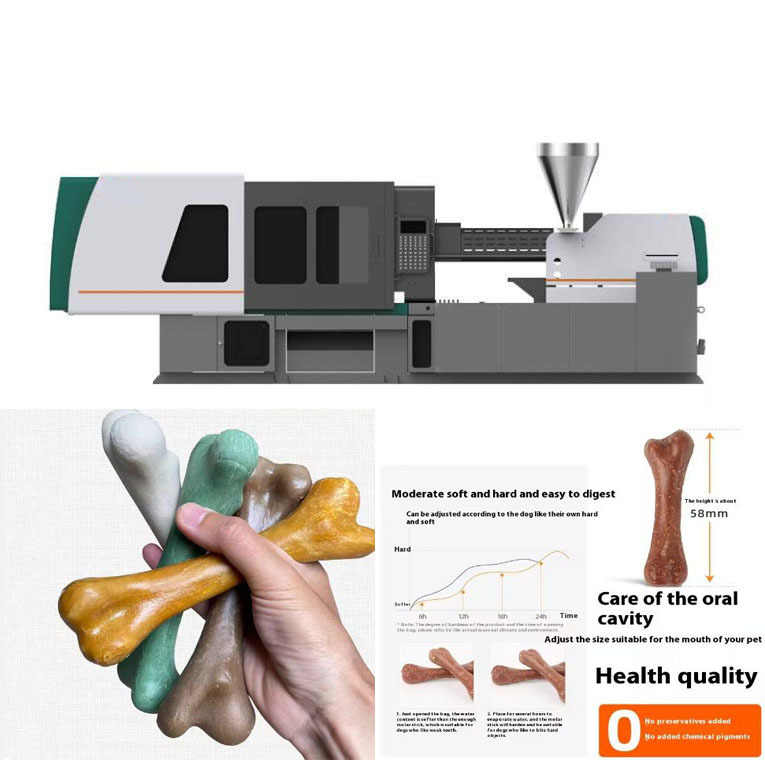

Hot Runner System Pet Injection Molding Machine for Dog Treats
Product Specification
DM-268 Pet Treats Injection Moulding Machine is special machinery for producing pet snacks. With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc. The shapes are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. Also, we can provide different recipes to meet various market demands.
Technical Parameter
|
Item |
Name of item |
Unit |
DM-268 |
|
Injection Unit |
Screw Diameter |
mm |
55 |
|
Screw L/D Ratio |
Ratio |
20 |
|
|
Injection Volume (Theoretical) |
cm |
640 |
|
|
Injection Weight (PE) |
g |
582 |
|
|
Injection Speed |
g/s |
224 |
|
|
Injection Pressure |
Mpa |
178 |
|
|
Screw Speed |
rpm |
0-180 |
|
|
Clamping Unit |
Clamping Force |
KN |
2500 |
|
Open Stroke |
mm |
545 |
|
|
Space Between Tie-bars |
mm×mm |
590 x 590 |
|
|
Min.Mould Height |
mm |
200 |
|
|
Max.Mould Height |
mm |
610 |
|
|
Ejector stroke |
mm |
160 |
|
|
Ejector Force |
KN |
62 |
|
|
Ejector Rob Quantity |
N |
8 + 4 + 1 |
|
|
Others |
Max. Pump Pressure |
Mpa |
16 |
|
Pump Motor Power |
kw |
15 |
|
|
Heater Power |
kw |
18 |
|
|
Machine Dimension (LxWxH) |
m x m x m |
6.5 x 1.6 x 2.2 |
|
|
Machine Weight |
t |
9 |
|
|
Mould Positioning Ring Diameter |
mm |
160 |
|
|
Material Hopper Volume |
kg |
50 |
|
|
Sphere Radius |
mm |
SR10 |
