Stainless Steel Pet Food Production Line Meat Strip Forming With Auto Tray System

China Stainless Steel Pet Food Production Line Meat Strip Forming With Auto Tray System supplier
Stainless Steel Pet Food Production Line Meat Strip Forming With Auto Tray System supplier Stainless Steel Pet Food Production Line Meat Strip Forming With Auto Tray System supplier Stainless Steel Pet Food Production Line Meat Strip Forming With Auto Tray System supplier

Large Image :  Stainless Steel Pet Food Production Line Meat Strip Forming With Auto Tray System

Product Details:

Place of Origin: Jinan China
Brand Name: Darin
Certification: CE ISO9001
Model Number: DR-220

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: USD
Packaging Details: We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading.
Delivery Time: 45 working days after receiving the down payment
Payment Terms: T/T, L/C, Western Union, D/A
Supply Ability: 50 Sets per year
Contact Now
Detailed Product Description
Material: SUS304 Usage: Meat Strips Dog Treats
Warranty: 1 Year Capacity: 300~500kg Per Hour
Power: 20kw Dimension: 14*6*3m
Worker Needed: 2~3 Workers Original: Jinan Darin





Food Grade Meat Strip Forming Machine With Auto Tray System Multi Pieces Saving Labor Cost



New Patent Auto Meaty Stick Making Machine With Auto Tray Loader is new designed by Darin team, Full automatic tray system mainly is used for providing continuous individual tray to meat strip machine. To make products which produced by meat strip machine be cut according to tray`s dimension and automatically enter into tray, it is convenient for subsequent baking link.

Two layers belts design, meat strip comes on upper belt, and trays comes on nether belt.

Darin auto meat strip machine was just installed in Taiwan client's factory, 32 pcs can be made one time, the capacity is able to reach 500kg/hr. If 16pcs, the capacity is 400-450kg/hr.



Instruction



DRT-65 Dog Meat Stick Machine is designed with auto tray system, which can supply the tray automatically to hold the sticks, saving labor cost greatly.


Full automatic tray system can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity.
Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing.
Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.



Parameter



Model DRT-65
Capacity 150-200kg/hr
Air source 0.5-.0.8 Mpa
Air Comsumption 90L/min
Tray Dimension 680x400mm
Quantity of Placing Tray One Tim 40pcs
Power 3.75kw
Dimension 9000X2900X1610mm
Machine weight 680kg

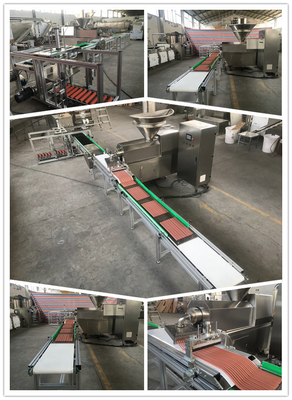

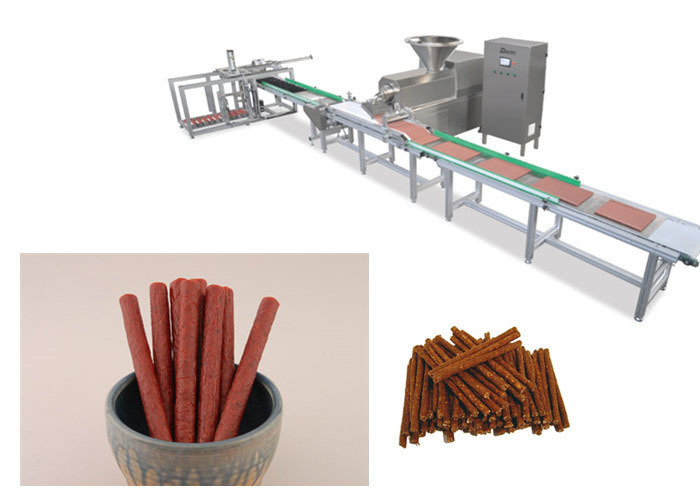

Machine picture



meat strip machine

Sample picture

meat strip
