Poped rice / peanut / nuts Bar Forming Machine 640 x 126mm Mould Size

Good quality Dog Food Extruder for sales
Good quality Dog Food Extruder for sales
We are very happy with the delivered machines from Darin. I recommend Darin as a business partner for the start-up of your production plant.

—— Mr. Roberto Biscotti of Italy

I can only say how very happy I am with this machine. It is cutting our labor cost in half and making our product the same size and shape every time.

—— Mr. James Urbanski of USA

The money you invest to Darin machines are much far less than that of other US or European machines and give you a big advantage against competition.

—— Mr. Gerard of Holland

I'm Online Chat Now

Poped rice / peanut / nuts Bar Forming Machine 640 x 126mm Mould Size

China Poped rice / peanut / nuts  Bar Forming Machine 640 x 126mm Mould Size supplier
Poped rice / peanut / nuts  Bar Forming Machine 640 x 126mm Mould Size supplier Poped rice / peanut / nuts  Bar Forming Machine 640 x 126mm Mould Size supplier

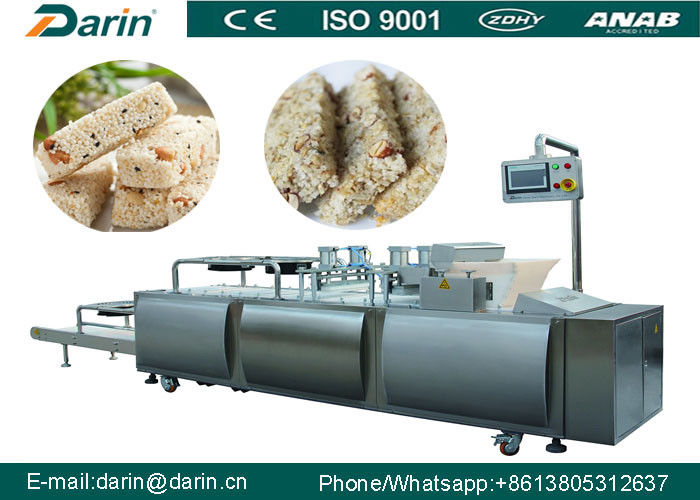

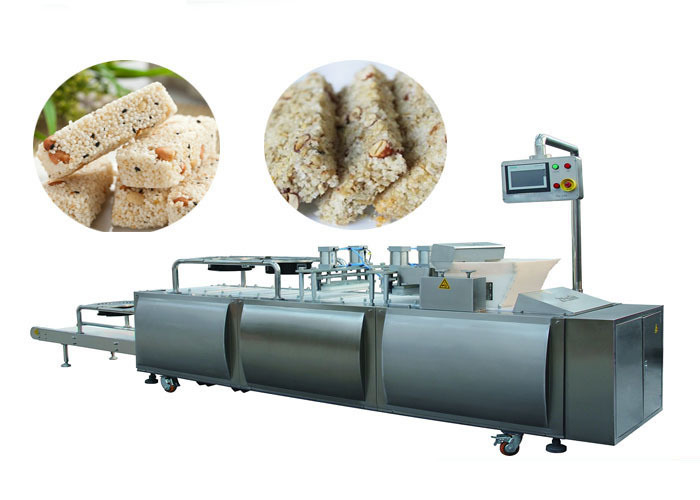

Large Image :  Poped rice / peanut / nuts Bar Forming Machine 640 x 126mm Mould Size

Product Details:

Place of Origin: Jinan China
Brand Name: Darin
Certification: CE ISO9001:2008
Model Number: DRC-65

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: USD 7000~ USD27000
Packaging Details: We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading.
Delivery Time: 45 working days after receiving the down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets per year
Contact Now
Detailed Product Description
Condition: New Name: Multinational Oat Chocolate Cereal Fruits Nuts Candy Bar Moulding Machine
Material: SUS304 Brand: Darin
Capacity: 300~500kg Per Hour After-sales Service Provided: Engineer Available To Service Machinery Overseas
Warranty: 12 Months Warranty

Poped rice/peanut/ sesame/nuts bar forming machine warmly welcomed



Introduction
DRC-65 Rice Bar Making Machinery can produce all kinds of shapes of cereal bars with the raw material of rice, millet, wheat, highland barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl barley, buckwheat, etc.



Features
1. The shapes can be round, cylindrical, square, semi round, triangular and blossom, etc.
2. Mechanical pressing & rubbing, does not hurt nuts, without waste.
3. Mechanical driving, accuracy positioning, upper and nether moulds tight fit, makes super cereal bar shaping.
4. Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
5. Moulds and hopper are both non-sticky processed. All the parts may contacts food are all non-toxic material, oil and high temperature resistance.
6. Cooling conveyer can be customized as demand.



Processing:



-----Mixing : Boil syrup,sugar,oil ;then mix all the materials in mixer



-----Feeding : Feed the mixed material into the moulds



-----Pressing : Press the materials in the moulds ,shape it .



-----Cooling : Using powefull fans to cool the shaped candy cake



-----Demoulding: Take the candy cakes off the moulds





Advantages:

------1. It can make special shapes of cereal candy bars other than cutting machines.

-------2. Candy bars produced by this machine are harder to broke.



-------3. This machine use stainless steel ,having longer life



-------4. This machine can use water to clean it .



-------5. High capacity up to 2 Tons/8 hours



-------6. Self heating function (MIXER).



Technical Parameters for Cereal Bar Forming Machine



Output 5000-30000pcs/hr
Power 2.5kw
Product max thickness 2cm
Mould size 640 x 126mm
Effecitive mould size 540 x 126mm
Weight 1200kg
Dimension

5300 x 965 x 1850mm



Our advantages for Puffed Rice Production Line



A Save the artificial, a skilled can operative three machines
B Shorter time, puffed corn takes only six minutes once
C Energy savings: Unit finished lower energy than the ordinary type
D Safe and convenient operation: four safety insurance, provincial testing,reduce labor intensity, user-friendly design, easy operation workers
E More convenient to collect the material, the inclined position of 35 degrees to discharge the material collected
F All-round shock, equipment and guide, gauge durable
G Low noise design



Application:

1 This stainless steel food puffing machine is specially suitable for puffing and expanding all kinds of coffee,rice,corn,barley,wheat,bean,maize,sorghum,millet,peanut,sunflower seeds ,sesame,Chinese chestnut and other food’s puffing, with crispy taste and lively shape.
2 Ideal for leisure food factory, coffee shop, bakery, drinks shop, restaurant, fruit and vegetable processing factory and condiment processing factory,etc.




Fair

Poped rice / peanut / nuts  Bar Forming Machine 640 x 126mm Mould Size

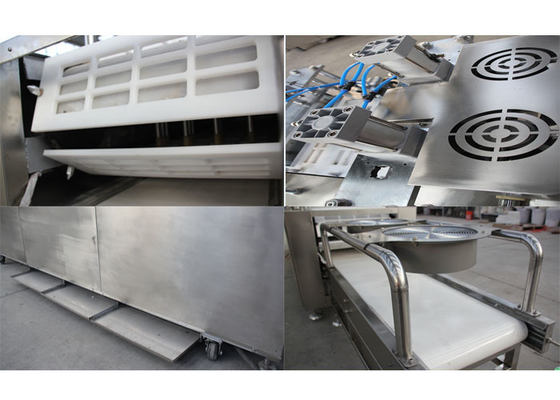

Machine parts:

Poped rice / peanut / nuts  Bar Forming Machine 640 x 126mm Mould Size
