Cooked Meat Strip Dog Food Production Line , Dog Food Manufacturing Equipment
|Place of Origin:||Jinan,Shandong Province|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 sets|
|Packaging Details:||We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading.|
|Delivery Time:||45 working days after receiving the down payment|
|Payment Terms:||T/T, L/C, Western Union, D/A|
|Supply Ability:||50 Sets per year|
|Material:||SUS304||Usage:||Meat Strips Dog Treats|
|Warranty:||1 Year||Capacity:||300~500kg Per Hour|
|Worker Needed:||2~3 Workers||Original:||Jinan Darin|
dog food production line,
pet food processing equipment

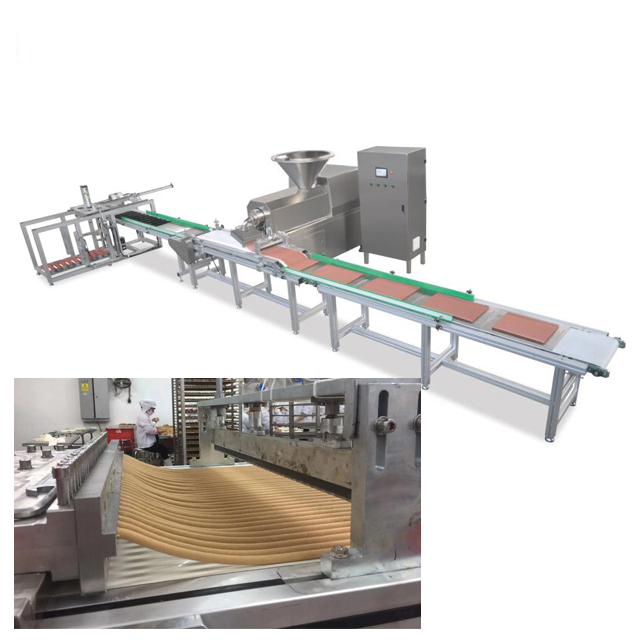

NEW Product Cooked Meat Strip Auto Meat Strips Dog Treats Processing Line
Auto Meat Strip Processing Line is an auto processing line can produce dog treat type meat strip. It combines two processing lines into one. With different moulds, various shapes can be made, such as strip, stick, screw shape, etc. Also, we can provide all kinds of recipe to make different tastes to full the demands of pet both for nutrition and chewing hobby.
1. Motors are from WEG, Germany, which has 3-year world-wide guarantee;
2. Electric parts are from ABB or Schneider, easy to find replacments at local market;
3. PLC and touch screen are from Siemens, Germany to realize easier operation and less labor quantity;
4. While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;
5. Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;
6. Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector;
7. All the cover body, mesh belt and parts touching with materials or final products are made by stainless steel 304.
|Output||Power||Required Worker||Voltage / Frequency||Dimension|
|300-500kg/hr||22kw||2~3||380V / 50Hz||15 x 6 x 3m|
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are on client’s account.
