Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: DRC-75

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD
Packaging Details: export wooden cases
Delivery Time: 45 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 99 sets per year
Get Best Price Contact Now

Detail Information

Name: Chikki Bar/Muesli Bar Cutting Machine, Fruit Bar Production Line Material: Stainless Steel 304
Recipe: Fee Of Charge After-sales Service: Full Life
Layout: Auto CAD Format According To Client's Workshop Output: 400-600kg/hr
High Light:

chocolate Bar Making Machine

,

granola bar machine

Product Description

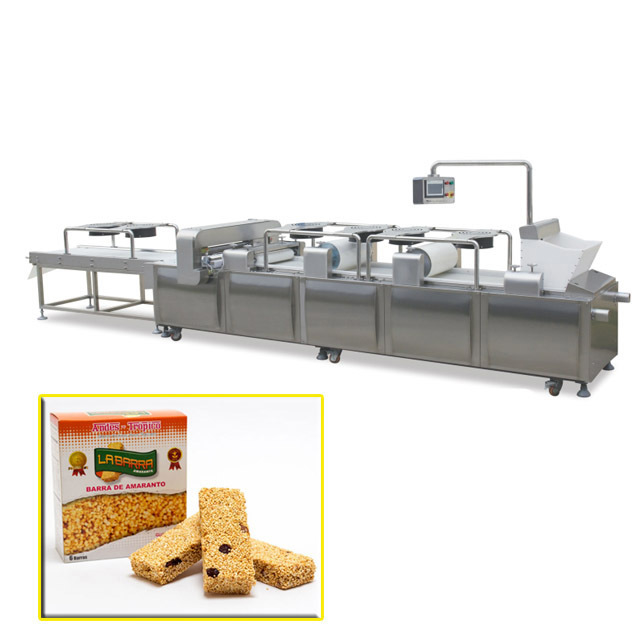

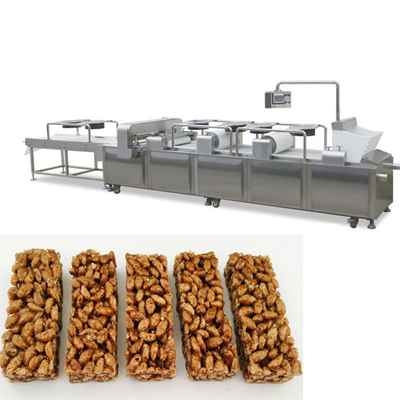

Chikki Bar/Muesli Bar Cutting Machine, Fruit Bar Production Line





Introduction



1. Chikki Bar/Muesli Bar Cutting Machine, Fruit Bar Production Line is mainly used to cut the mixed cereals products into required sizes and cool them down.



2. Chikki Bar/Muesli Bar Cutting Machine, Fruit Bar Production Line is controlled by two inverters which allow it finish the cross cut by one machine.

3. Museli Bar Making Machine make the mixture quite flat and stick to each other tightly, avoid splitting.



4. PLC Touch Screen controller box of Chikki Bar/Muesli Bar Cutting Machine, Fruit Bar Production Line allows operator to set the required cutting length and width in advance, quite simple to operate.



5. Machine parts which contact the foods are made of food grade plastic, and the machine body cover is made of stainless steel which is all suitable for food processing safety.



6. Cooling conveyer can be customized as demand.

Technical Parameters



Output Installed Capacity Voltage / Frequency Dimension Workers Required
400-600kg/hr 15.2kw 380V 50Hz 6.65 x 1.31 x 2m 3-4 workers



Features


1. The DRC-75 Cereal bar cutting machine added mixer machine above the feeder. The machine come true the automatic mixing the raw material and pour the raw material to feeder. Mixer machine have the heat preservation function and could set the mixer time.
2. The feeder of DRC-75 cereal bar cutting machine have the function of keeping the raw material warn to advoid mixed material cold and soildfication.
3. DRC-75 cereal bar machine use the PTFE belt. This belt have the feature of anti-sticking, better tenacity and not easy to damage.
4. The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.
5. We added extra two sets of fans above the conveyor to cool the cereal bar quickly and become hard soon.
6. The cutter in the longitudinal direction take the cutter groove design. It will make sure the cereal bar be cutted 100% , no sticking and separate automaticly.



Our service



1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.

6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.

Sample:

Chikki / Muesli Cereal Bar Making Machine , Fruit Bar Production Line 0

Chikki / Muesli Cereal Bar Making Machine , Fruit Bar Production Line 1

Chikki / Muesli Cereal Bar Making Machine , Fruit Bar Production Line 2
